APG0603RWF-TT-5MAV

Obsolete

Kingbright

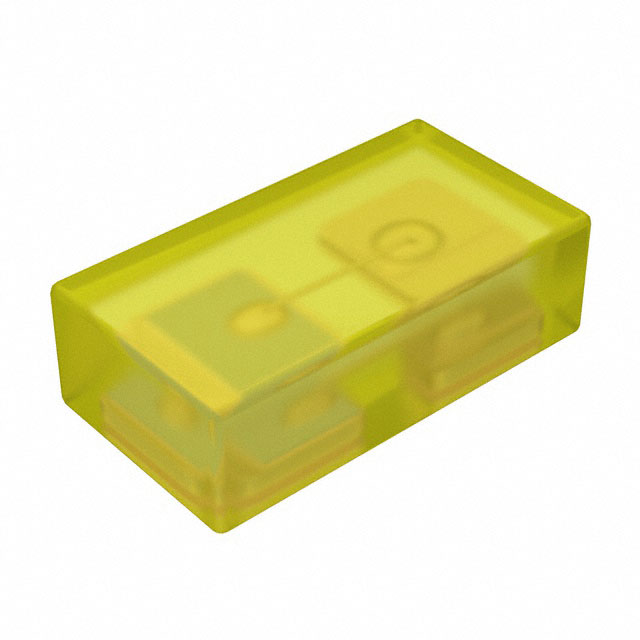

LED WHITE DIFFUSED 2SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APG0603RWF-TT-5MAV

Obsolete

Kingbright

LED WHITE DIFFUSED 2SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APG0603RWF-TT-5MAV

Color	White
Configuration	Standard
Current - Test	5 mA
Height (Max) [Max]	0.25 mm
Lens Color	Yellow
Lens Size [x]	0.35 mm
Lens Size [y]	0.65 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Diffused
Millicandela Rating	100 mcd
Mounting Type	Surface Mount
Package / Case	2-SMD, 0201
Size / Dimension [x]	0.65 mm
Size / Dimension [y]	0.35 mm
Supplier Device Package	2-SMD
Viewing Angle	135 °
Voltage - Forward (Vf) (Typ)	2.9 V

APG0603 Series

Part	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Lens Size [y]	Lens Size [x]	Millicandela Rating	Color	Lens Transparency	Viewing Angle	Supplier Device Package	Configuration	Mounting Type	Current - Test	Voltage - Forward (Vf) (Typ)	Lens Style	Height (Max) [Max]	Lens Color	Wavelength - Peak	Wavelength - Dominant [custom]	Wavelength - Dominant	Package / Case
Kingbright APG0603RWF-TT-5MAV	2-SMD 0201	0.35 mm	0.65 mm	0.65 mm	0.35 mm	100 mcd	White	Diffused	135 °	2-SMD	Standard	Surface Mount	5 mA	2.9 V	Rectangle with Flat Top	0.25 mm	Yellow
Kingbright APG0603VGC-TT-5MAV	2-SMD 0201	0.35 mm	0.65 mm	0.65 mm	0.35 mm	80 mcd	Green	Clear	145 °	2-SMD	Standard	Surface Mount	5 mA	3 V	Rectangle with Flat Top	0.25 mm	Colorless	518 nm	527 nm
Kingbright APG0603VBC-A1-5MAV	0201	0.35 mm	0.65 mm	0.35 mm	0.65 mm	60 mcd	Blue	Clear	140 °	2-SMD	Standard	Surface Mount	5 mA	2.9 V	Rectangle with Flat Top	0.25 mm	Colorless	463 nm		468 nm	0603 Metric
Kingbright APG0603PBC-TT-5MAV	2-SMD 0201	0.35 mm	0.65 mm	0.65 mm	0.35 mm	25 mcd	Blue	Clear	140 °	2-SMD	Standard	Surface Mount	5 mA	2.9 V	Rectangle with Flat Top	0.25 mm	Colorless	461 nm		467 nm
Kingbright APG0603ZGC-5MAV	0201	0.35 mm	0.65 mm	0.35 mm	0.65 mm	280 mcd	Green	Clear	140 °	2-SMD	Standard	Surface Mount	5 mA	2.85 V	Rectangle with Flat Top	0.25 mm	Colorless	515 nm		525 nm	0603 Metric
Kingbright APG0603CGC-TT	2-SMD 0201	0.35 mm	0.65 mm	0.65 mm	0.35 mm	15 mcd	Green	Clear	140 °	2-SMD	Standard	Surface Mount	10 mA	1.97 V	Rectangle with Flat Top	0.25 mm	Colorless	572 nm		571 nm
Kingbright APG0603SEC-TT	2-SMD 0201	0.35 mm	0.65 mm	0.65 mm	0.35 mm	150 mcd		Clear	140 °	2-SMD	Standard	Surface Mount	10 mA	2.01 V	Rectangle with Flat Top	0.25 mm	Colorless	611 nm		605 nm
Kingbright APG0603SEC-E-TT	2-SMD 0201	0.35 mm	0.65 mm	0.65 mm	0.35 mm	120 mcd	Red	Clear	140 °	2-SMD	Standard	Surface Mount	10 mA	1.93 V	Rectangle with Flat Top	0.25 mm	Colorless	632 nm		624 nm
