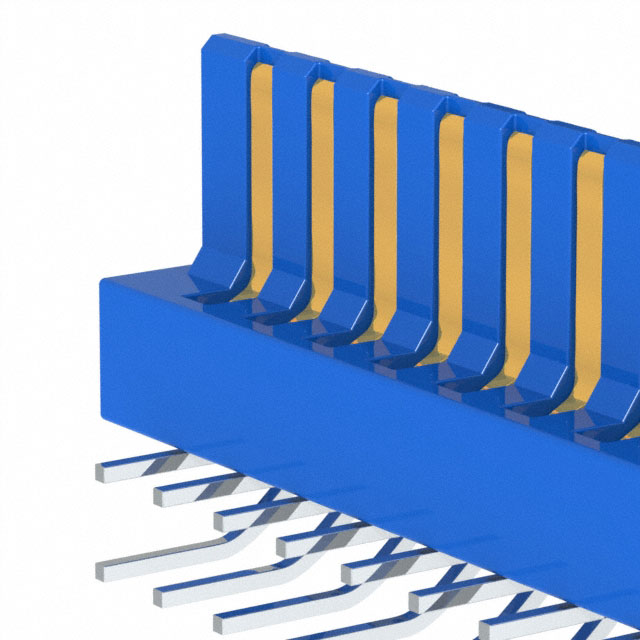

ECM16MMVN
ActiveSullins Connector Solutions
CONN CARDEDGE MALE 32POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
ECM16MMVN
ActiveSullins Connector Solutions
CONN CARDEDGE MALE 32POS 0.156
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ECM16MMVN |
|---|---|
| Card Thickness | 0.062 in |
| Card Thickness | 1.57 mm |
| Card Type | Fits Female Edgecards |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Phosphor Bronze |
| Gender | Male |
| Material - Insulation | Polybutylene Terephthalate (PBT) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Bay/Row [custom] | 16 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
ECM16 Series
| Part | Material - Insulation | Features | Pitch [x] | Pitch [x] | Read Out | Gender | Number of Rows | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Card Type | Contact Finish | Contact Material | Number of Positions/Bay/Row [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness | Card Thickness | Termination | Flange Feature | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | Card Extender | 0.156 in | 3.96 mm | Dual | Male | 2 | Board Edge Straddle Mount | 0.76 Ám | 30 Áin | Fits Female Edgecards | Gold | Phosphor Bronze | 16 | 125 °C | -65 ░C | 0.062 in | 1.57 mm | Solder | |||
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | 0.156 in | 3.96 mm | Dual | Male | 2 | Through Hole | 0.76 Ám | 30 Áin | Fits Female Edgecards | Gold | Phosphor Bronze | 16 | 125 °C | -65 ░C | 0.062 in | 1.57 mm | Solder | ||||
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | 0.156 in | 3.96 mm | Dual | Male | 2 | Through Hole Right Angle | 0.76 Ám | 30 Áin | Fits Female Edgecards | Gold | Phosphor Bronze | 16 | 125 °C | -65 ░C | 0.062 in | 1.57 mm | Solder | Flush Mount Top Opening Unthreaded | 0.125 " | 3.18 mm | |
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | 0.156 in | 3.96 mm | Dual | Male | 2 | Through Hole Right Angle | 0.76 Ám | 30 Áin | Fits Female Edgecards | Gold | Phosphor Bronze | 16 | 125 °C | -65 ░C | 0.062 in | 1.57 mm | Solder | ||||
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | 0.156 in | 3.96 mm | Dual | Male | 2 | Through Hole | 0.76 Ám | 30 Áin | Fits Female Edgecards | Gold | Phosphor Bronze | 16 | 125 °C | -65 ░C | 0.062 in | 1.57 mm | Wire Wrap | ||||
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | Card Extender | 0.156 in | 3.96 mm | Dual | Male | 2 | Board Edge Straddle Mount | 0.76 Ám | 30 Áin | Fits Female Edgecards | Gold | Phosphor Bronze | 16 | 125 °C | -65 ░C | 0.062 in | 1.57 mm | Solder | Flush Mount Top Opening Unthreaded | 0.125 " | 3.18 mm |
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | 0.156 in | 3.96 mm | Dual | Male | 2 | Through Hole Right Angle | 0.76 Ám | 30 Áin | Fits Female Edgecards | Gold | Phosphor Bronze | 16 | 125 °C | -65 ░C | 0.062 in | 1.57 mm | Solder | ||||
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | 0.156 in | 3.96 mm | Dual | Male | 2 | Through Hole Right Angle | 0.76 Ám | 30 Áin | Fits Female Edgecards | Gold | Phosphor Bronze | 16 | 125 °C | -65 ░C | 0.062 in | 1.57 mm | Solder | ||||
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | 0.156 in | 3.96 mm | Dual | Male | 2 | Through Hole Right Angle | 0.76 Ám | 30 Áin | Fits Female Edgecards | Gold | Phosphor Bronze | 16 | 125 °C | -65 ░C | 0.062 in | 1.57 mm | Solder | Flush Mount Top Opening Unthreaded | 0.125 " | 3.18 mm | |
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | Card Extender | 0.156 in | 3.96 mm | Dual | Male | 2 | Board Edge Straddle Mount | 0.76 Ám | 30 Áin | Fits Female Edgecards | Gold | Phosphor Bronze | 16 | 125 °C | -65 ░C | 0.062 in | 1.57 mm | Solder | Flush Mount Top Opening Unthreaded | 0.125 " | 3.18 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 10 | $ 6.72 | |
Description
General part information
ECM16 Series
32 Position Male Connector Fits Female Edgecards Gold 0.156" (3.96mm)
Documents
Technical documentation and resources
No documents available
