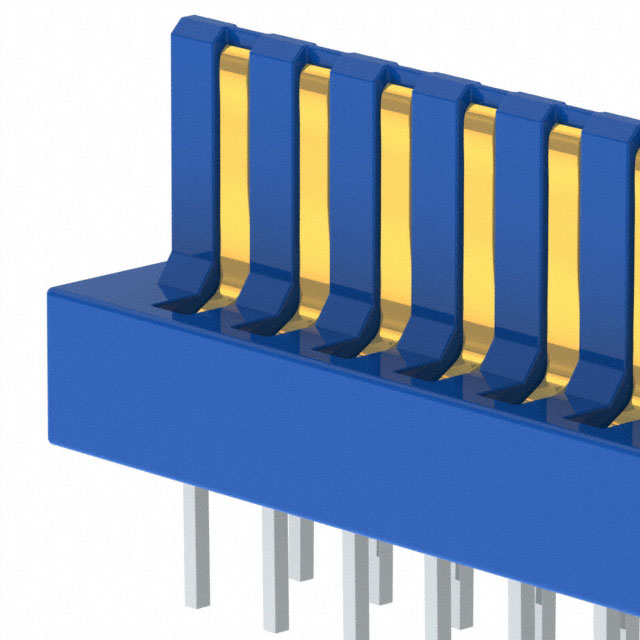

ECM16MMSN

Active

Sullins Connector Solutions

CONN CARDEDGE MALE 32POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

ECM16MMSN

Active

Sullins Connector Solutions

CONN CARDEDGE MALE 32POS 0.156

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ECM16MMSN

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Fits Female Edgecards
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Phosphor Bronze
Gender	Male
Material - Insulation	Polybutylene Terephthalate (PBT)
Mounting Type	Through Hole
Number of Positions/Bay/Row [custom]	16
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder

ECM16 Series

Part	Material - Insulation	Features	Pitch [x]	Pitch [x]	Read Out	Gender	Number of Rows	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Card Type	Contact Finish	Contact Material	Number of Positions/Bay/Row [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness	Card Thickness	Termination	Flange Feature	Flange Feature	Flange Feature
Sullins Connector Solutions ECM16MMRN	Polybutylene Terephthalate (PBT)	Card Extender	0.156 in	3.96 mm	Dual	Male	2	Board Edge Straddle Mount	0.76 Ám	30 Áin	Fits Female Edgecards	Gold	Phosphor Bronze	16	125 °C	-65 ░C	0.062 in	1.57 mm	Solder
Sullins Connector Solutions ECM16MMSN	Polybutylene Terephthalate (PBT)		0.156 in	3.96 mm	Dual	Male	2	Through Hole	0.76 Ám	30 Áin	Fits Female Edgecards	Gold	Phosphor Bronze	16	125 °C	-65 ░C	0.062 in	1.57 mm	Solder
Sullins Connector Solutions ECM16MMVD	Polybutylene Terephthalate (PBT)		0.156 in	3.96 mm	Dual	Male	2	Through Hole Right Angle	0.76 Ám	30 Áin	Fits Female Edgecards	Gold	Phosphor Bronze	16	125 °C	-65 ░C	0.062 in	1.57 mm	Solder	Flush Mount Top Opening Unthreaded	0.125 "	3.18 mm
Sullins Connector Solutions ECM16MMAN	Polybutylene Terephthalate (PBT)		0.156 in	3.96 mm	Dual	Male	2	Through Hole Right Angle	0.76 Ám	30 Áin	Fits Female Edgecards	Gold	Phosphor Bronze	16	125 °C	-65 ░C	0.062 in	1.57 mm	Solder
Sullins Connector Solutions ECM16MMMN	Polybutylene Terephthalate (PBT)		0.156 in	3.96 mm	Dual	Male	2	Through Hole	0.76 Ám	30 Áin	Fits Female Edgecards	Gold	Phosphor Bronze	16	125 °C	-65 ░C	0.062 in	1.57 mm	Wire Wrap
Sullins Connector Solutions ECM16MMND	Polybutylene Terephthalate (PBT)	Card Extender	0.156 in	3.96 mm	Dual	Male	2	Board Edge Straddle Mount	0.76 Ám	30 Áin	Fits Female Edgecards	Gold	Phosphor Bronze	16	125 °C	-65 ░C	0.062 in	1.57 mm	Solder	Flush Mount Top Opening Unthreaded	0.125 "	3.18 mm
Sullins Connector Solutions ECM16MMVN-S189	Polybutylene Terephthalate (PBT)		0.156 in	3.96 mm	Dual	Male	2	Through Hole Right Angle	0.76 Ám	30 Áin	Fits Female Edgecards	Gold	Phosphor Bronze	16	125 °C	-65 ░C	0.062 in	1.57 mm	Solder
Sullins Connector Solutions ECM16MMVN	Polybutylene Terephthalate (PBT)		0.156 in	3.96 mm	Dual	Male	2	Through Hole Right Angle	0.76 Ám	30 Áin	Fits Female Edgecards	Gold	Phosphor Bronze	16	125 °C	-65 ░C	0.062 in	1.57 mm	Solder
Sullins Connector Solutions ECM16MMAD	Polybutylene Terephthalate (PBT)		0.156 in	3.96 mm	Dual	Male	2	Through Hole Right Angle	0.76 Ám	30 Áin	Fits Female Edgecards	Gold	Phosphor Bronze	16	125 °C	-65 ░C	0.062 in	1.57 mm	Solder	Flush Mount Top Opening Unthreaded	0.125 "	3.18 mm
Sullins Connector Solutions ECM16MMRD	Polybutylene Terephthalate (PBT)	Card Extender	0.156 in	3.96 mm	Dual	Male	2	Board Edge Straddle Mount	0.76 Ám	30 Áin	Fits Female Edgecards	Gold	Phosphor Bronze	16	125 °C	-65 ░C	0.062 in	1.57 mm	Solder	Flush Mount Top Opening Unthreaded	0.125 "	3.18 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	10	$ 6.37

Description

General part information

ECM16 Series

32 Position Male Connector Fits Female Edgecards Gold 0.156" (3.96mm)
