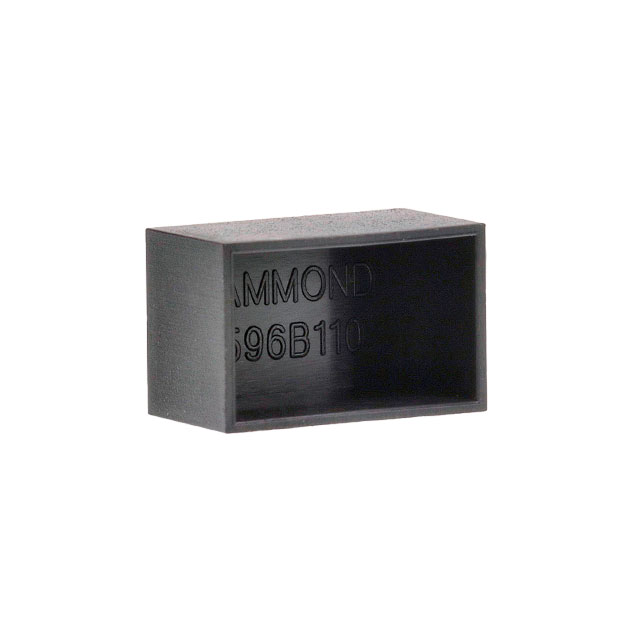

1596B110

Active

Hammond Manufacturing

BOX PLASTIC BLK 0.85"L X 0.55"W

Deep-Dive with AI

Search across all available documentation for this part.

1596B110

Active

Hammond Manufacturing

BOX PLASTIC BLK 0.85"L X 0.55"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1596B110

Area (L x W)	3 cm˛
Area (L x W)	0.47 in˛
Color	Black
Container Type	Potting, Box
Design	Open End(s)
Height [z]	0.46 in
Height [z]	11.68 mm
Material	Plastic
Size / Dimension [x]	21.59 mm
Size / Dimension [x]	0.85 "
Size / Dimension [y]	0.55 in
Size / Dimension [y]	13.97 mm
Thickness	0.04 in
Thickness	1.02 mm

1596 Series

Part	Design	Color	Thickness	Thickness	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Material	Height [z]	Height [z]	Container Type	Area (L x W)	Area (L x W)	Height [z]	Area (L x W)	Area (L x W) [custom]	Area (L x W) [custom]	Area (L x W)
Hammond Manufacturing 1596B110	Open End(s)	Black	0.04 in	1.02 mm	21.59 mm	0.55 in	13.97 mm	0.85 "	Plastic	0.46 in	11.68 mm	Box Potting	3 cm˛	0.47 in˛
Hammond Manufacturing 1596B103-10		Black	0.039 in	1 mm	40 mm	1.378 "	35 mm	1.575 in	Plastic	0.791 in	20.1 mm	Box Potting	2.17 in˛ 14 cm˛
Hammond Manufacturing 1596B115-5		Black	0.055 in	1.4 mm	89 mm	2.52 "	64 mm	3.504 in	Plastic		1.28 in	Box Potting	57 cm˛	8.83 in˛	32.51 mm
Hammond Manufacturing 1596B109-10		Black	0.035 in	0.9 mm	11.5 mm	0.453 in	11.5 mm	0.453 "	Plastic	0.354 in	9 mm	Box Potting	0.2 in˛			1.3 cm˛
Hammond Manufacturing 1596B113	Open End(s)	Black	0.04 in	1.02 mm	39.88 mm	1.57 "	39.88 mm	1.57 in	Plastic	1.15 in	29.21 mm	Box Potting					15.9 cm˛	2.46 in˛
Hammond Manufacturing 1596B112	Open End(s)	Black	0.04 in	1.02 mm	24.89 mm	0.98 in	24.89 mm	0.98 "	Plastic	0.98 in	24.89 mm	Box Potting	6.2 cm˛	0.96 in˛
Hammond Manufacturing 1596B104	Open End(s)	Black	0.04 in	1.02 mm	49.78 mm	1.57 "	39.88 mm	1.96 "	Plastic	1.18 in	29.97 mm	Box Potting	19.9 cm˛						3.08 in˛
Hammond Manufacturing 1596B101	Open End(s)	Black	0.04 in	1.02 mm	24.89 mm	0.79 "	20.07 mm	0.98 "	Plastic	0.59 "	14.99 mm	Box Potting	6.2 cm˛	0.96 in˛
Hammond Manufacturing 1596B115	Open End(s)	Black	0.04 in	1.02 mm	88.9 mm	2.52 "	64 mm	3.5 in	Plastic		1.28 in	Box Potting	56.9 cm˛	8.82 in˛	32.51 mm
Hammond Manufacturing 1596B106-5		Black	0.039 in	1 mm	100 mm	2.362 in	60 mm	3.937 in	Plastic	0.988 in	25.1 mm	Box Potting	60 cm²	9.3 in²

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.40
		10	$ 2.04
		100	$ 1.42
		1000	$ 1.22

Description

General part information

1596 Series

Box, Potting Plastic Black Open End(s) 0.850" L x 0.550" W (21.59mm x 13.97mm) X 0.460" (11.68mm)
