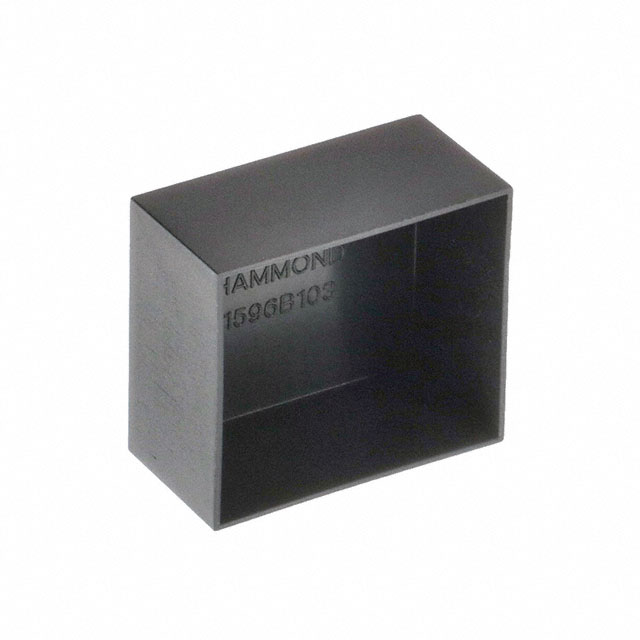

1596B103-10
ActiveHammond Manufacturing
BOX PLAS BLK 1.58L X 1.38"W 1=10
Deep-Dive with AI
Search across all available documentation for this part.

1596B103-10
ActiveHammond Manufacturing
BOX PLAS BLK 1.58L X 1.38"W 1=10
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1596B103-10 |
|---|---|
| Area (L x W) | 14 cm˛, 2.17 in˛ |
| Color | Black |
| Container Type | Potting, Box |
| Height [z] | 20.1 mm |
| Height [z] | 0.791 in |
| Material | Plastic |
| Size / Dimension [x] | 1.575 in |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [y] | 35 mm |
| Size / Dimension [y] | 1.378 " |
| Thickness | 0.039 in |
| Thickness | 1 mm |
1596 Series
| Part | Design | Color | Thickness | Thickness | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Material | Height [z] | Height [z] | Container Type | Area (L x W) | Area (L x W) | Height [z] | Area (L x W) | Area (L x W) [custom] | Area (L x W) [custom] | Area (L x W) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hammond Manufacturing | Open End(s) | Black | 0.04 in | 1.02 mm | 21.59 mm | 0.55 in | 13.97 mm | 0.85 " | Plastic | 0.46 in | 11.68 mm | Box Potting | 3 cm˛ | 0.47 in˛ | |||||
Hammond Manufacturing | Black | 0.039 in | 1 mm | 40 mm | 1.378 " | 35 mm | 1.575 in | Plastic | 0.791 in | 20.1 mm | Box Potting | 2.17 in˛ 14 cm˛ | |||||||
Hammond Manufacturing | Black | 0.055 in | 1.4 mm | 89 mm | 2.52 " | 64 mm | 3.504 in | Plastic | 1.28 in | Box Potting | 57 cm˛ | 8.83 in˛ | 32.51 mm | ||||||
Hammond Manufacturing | Black | 0.035 in | 0.9 mm | 11.5 mm | 0.453 in | 11.5 mm | 0.453 " | Plastic | 0.354 in | 9 mm | Box Potting | 0.2 in˛ | 1.3 cm˛ | ||||||
Hammond Manufacturing | Open End(s) | Black | 0.04 in | 1.02 mm | 39.88 mm | 1.57 " | 39.88 mm | 1.57 in | Plastic | 1.15 in | 29.21 mm | Box Potting | 15.9 cm˛ | 2.46 in˛ | |||||
Hammond Manufacturing | Open End(s) | Black | 0.04 in | 1.02 mm | 24.89 mm | 0.98 in | 24.89 mm | 0.98 " | Plastic | 0.98 in | 24.89 mm | Box Potting | 6.2 cm˛ | 0.96 in˛ | |||||
Hammond Manufacturing | Open End(s) | Black | 0.04 in | 1.02 mm | 49.78 mm | 1.57 " | 39.88 mm | 1.96 " | Plastic | 1.18 in | 29.97 mm | Box Potting | 19.9 cm˛ | 3.08 in˛ | |||||
Hammond Manufacturing | Open End(s) | Black | 0.04 in | 1.02 mm | 24.89 mm | 0.79 " | 20.07 mm | 0.98 " | Plastic | 0.59 " | 14.99 mm | Box Potting | 6.2 cm˛ | 0.96 in˛ | |||||
Hammond Manufacturing | Open End(s) | Black | 0.04 in | 1.02 mm | 88.9 mm | 2.52 " | 64 mm | 3.5 in | Plastic | 1.28 in | Box Potting | 56.9 cm˛ | 8.82 in˛ | 32.51 mm | |||||
Hammond Manufacturing | Black | 0.039 in | 1 mm | 100 mm | 2.362 in | 60 mm | 3.937 in | Plastic | 0.988 in | 25.1 mm | Box Potting | 60 cm² | 9.3 in² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 8.58 | |
| 5 | $ 8.39 | |||
Description
General part information
1596 Series
Box, Potting Plastic Black 1.575" L x 1.378" W (40.00mm x 35.00mm) X 0.791" (20.10mm)
Documents
Technical documentation and resources
No documents available
