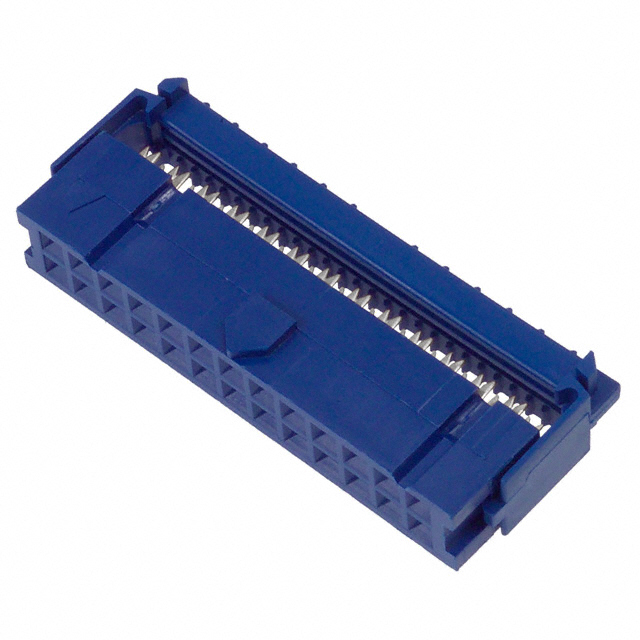

CWR-227-26-0203

Active

CW Industries

CONN RCPT 26POS IDC TIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CWR-227-26-0203

Active

CW Industries

CONN RCPT 26POS IDC TIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CWR-227-26-0203

Cable Termination	IDC
Color	Blue
Connector Type	Receptacle
Contact Finish	Tin
Contact Type	Female Socket
Features	Polarizing Key, Feed Through
Mounting Type	Free Hanging (In-Line)
Number of Positions	26
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Type	Ribbon Cable

CWR-227 Series

Part	Contact Finish	Number of Rows	Pitch [x]	Pitch [x]	Contact Type	Row Spacing [x]	Row Spacing	Number of Positions	Connector Type	Features	Cable Termination	Mounting Type	Wire Type	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Positions
CW Industries CWR-227-16-0003	Tin-Lead	2	2.54 mm	0.1 in	Female Socket	0.1 in	2.54 mm	16	Receptacle	Feed Through Polarizing Key	IDC	Free Hanging (In-Line)	Ribbon Cable	2.54 µm	100 µin	Blue
CW Industries CWR-227-40-0203	Tin	2	2.54 mm	0.1 in	Female Socket	0.1 in	2.54 mm		Receptacle	Feed Through Polarizing Key	IDC	Free Hanging (In-Line)	Ribbon Cable			Blue	40
CW Industries CWR-227-20-0021	Gold	2	2.54 mm	0.1 in	Female Socket	0.1 in	2.54 mm		Receptacle	Feed Through Polarizing Key	IDC	Free Hanging (In-Line)	Ribbon Cable	0.76 Ám	30 Áin	Blue	20
CW Industries CWR-227-50-0021	Gold	2	2.54 mm	0.1 in	Female Socket	0.1 in	2.54 mm		Receptacle	Feed Through Polarizing Key	IDC	Free Hanging (In-Line)	Ribbon Cable	0.76 Ám	30 Áin	Blue	50
CW Industries CWR-227-20-0000	Gold	2	2.54 mm	0.1 in	Female Socket	0.1 in	2.54 mm		Receptacle	Feed Through Polarizing Key	IDC	Free Hanging (In-Line)	Ribbon Cable	0.25 Ám	10 Áin	Blue	20
CW Industries CWR-227-40-0021	Gold	2	2.54 mm	0.1 in	Female Socket	0.1 in	2.54 mm		Receptacle	Feed Through Polarizing Key	IDC	Free Hanging (In-Line)	Ribbon Cable	0.76 Ám	30 Áin	Blue	40
CW Industries CWR-227-20-0203	Tin	2	2.54 mm	0.1 in	Female Socket	0.1 in	2.54 mm		Receptacle	Feed Through Polarizing Key	IDC	Free Hanging (In-Line)	Ribbon Cable			Blue	20
CW Industries CWR-227-26-0203	Tin	2	2.54 mm	0.1 in	Female Socket	0.1 in	2.54 mm		Receptacle	Feed Through Polarizing Key	IDC	Free Hanging (In-Line)	Ribbon Cable			Blue	26
CW Industries CWR-227-10-0000	Gold	2	2.54 mm	0.1 in	Female Socket	0.1 in	2.54 mm		Receptacle	Feed Through Polarizing Key	IDC	Free Hanging (In-Line)	Ribbon Cable	0.25 Ám	10 Áin	Blue	10
CW Industries CWR-227-26-0021	Gold	2	2.54 mm	0.1 in	Female Socket	0.1 in	2.54 mm		Receptacle	Feed Through Polarizing Key	IDC	Free Hanging (In-Line)	Ribbon Cable	0.76 Ám	30 Áin	Blue	26

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.37
		10	$ 2.58
		25	$ 2.32
		50	$ 2.15
		100	$ 1.99
		300	$ 1.77
		500	$ 1.68
		1000	$ 1.56
		2500	$ 1.43

Description

General part information

CWR-227 Series

26 Position Rectangular Receptacle Connector IDC Tin
