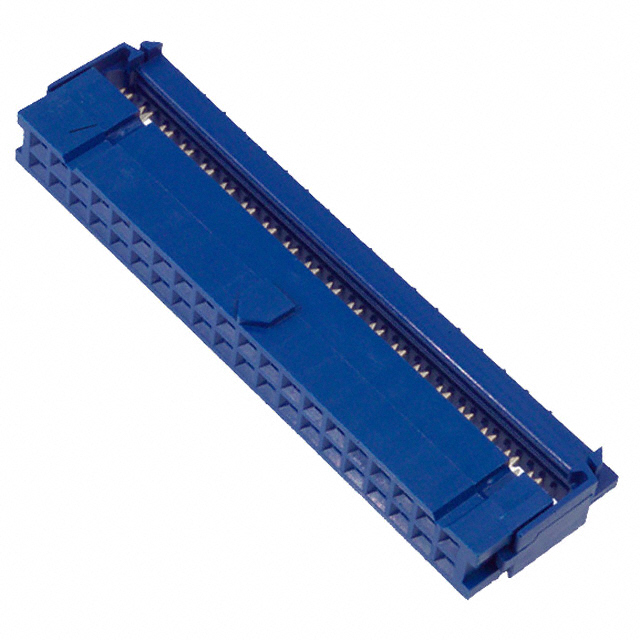

CWR-227-40-0203
ActiveCW Industries
CONN RCPT 40POS IDC TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsSocket Connectors
CWR-227-40-0203
ActiveCW Industries
CONN RCPT 40POS IDC TIN
Deep-Dive with AI
DocumentsSocket Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | CWR-227-40-0203 |
|---|---|
| Cable Termination | IDC |
| Color | Blue |
| Connector Type | Receptacle |
| Contact Finish | Tin |
| Contact Type | Female Socket |
| Features | Polarizing Key, Feed Through |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
| Wire Type | Ribbon Cable |
CWR-227 Series
| Part | Contact Finish | Number of Rows | Pitch [x] | Pitch [x] | Contact Type | Row Spacing [x] | Row Spacing | Number of Positions | Connector Type | Features | Cable Termination | Mounting Type | Wire Type | Contact Finish Thickness | Contact Finish Thickness | Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CW Industries | Tin-Lead | 2 | 2.54 mm | 0.1 in | Female Socket | 0.1 in | 2.54 mm | 16 | Receptacle | Feed Through Polarizing Key | IDC | Free Hanging (In-Line) | Ribbon Cable | 2.54 µm | 100 µin | Blue | |
CW Industries | Tin | 2 | 2.54 mm | 0.1 in | Female Socket | 0.1 in | 2.54 mm | Receptacle | Feed Through Polarizing Key | IDC | Free Hanging (In-Line) | Ribbon Cable | Blue | 40 | |||
CW Industries | Gold | 2 | 2.54 mm | 0.1 in | Female Socket | 0.1 in | 2.54 mm | Receptacle | Feed Through Polarizing Key | IDC | Free Hanging (In-Line) | Ribbon Cable | 0.76 Ám | 30 Áin | Blue | 20 | |
CW Industries | Gold | 2 | 2.54 mm | 0.1 in | Female Socket | 0.1 in | 2.54 mm | Receptacle | Feed Through Polarizing Key | IDC | Free Hanging (In-Line) | Ribbon Cable | 0.76 Ám | 30 Áin | Blue | 50 | |
CW Industries | Gold | 2 | 2.54 mm | 0.1 in | Female Socket | 0.1 in | 2.54 mm | Receptacle | Feed Through Polarizing Key | IDC | Free Hanging (In-Line) | Ribbon Cable | 0.25 Ám | 10 Áin | Blue | 20 | |
CW Industries | Gold | 2 | 2.54 mm | 0.1 in | Female Socket | 0.1 in | 2.54 mm | Receptacle | Feed Through Polarizing Key | IDC | Free Hanging (In-Line) | Ribbon Cable | 0.76 Ám | 30 Áin | Blue | 40 | |
CW Industries | Tin | 2 | 2.54 mm | 0.1 in | Female Socket | 0.1 in | 2.54 mm | Receptacle | Feed Through Polarizing Key | IDC | Free Hanging (In-Line) | Ribbon Cable | Blue | 20 | |||
CW Industries | Tin | 2 | 2.54 mm | 0.1 in | Female Socket | 0.1 in | 2.54 mm | Receptacle | Feed Through Polarizing Key | IDC | Free Hanging (In-Line) | Ribbon Cable | Blue | 26 | |||
CW Industries | Gold | 2 | 2.54 mm | 0.1 in | Female Socket | 0.1 in | 2.54 mm | Receptacle | Feed Through Polarizing Key | IDC | Free Hanging (In-Line) | Ribbon Cable | 0.25 Ám | 10 Áin | Blue | 10 | |
CW Industries | Gold | 2 | 2.54 mm | 0.1 in | Female Socket | 0.1 in | 2.54 mm | Receptacle | Feed Through Polarizing Key | IDC | Free Hanging (In-Line) | Ribbon Cable | 0.76 Ám | 30 Áin | Blue | 26 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.04 | |
| 10 | $ 3.67 | |||
| 25 | $ 3.47 | |||
| 50 | $ 3.39 | |||
| 100 | $ 3.23 | |||
| 300 | $ 2.83 | |||
| 500 | $ 2.75 | |||
| 1000 | $ 2.34 | |||
| 2500 | $ 2.18 | |||
Description
General part information
CWR-227 Series
40 Position Rectangular Receptacle Connector IDC Tin
