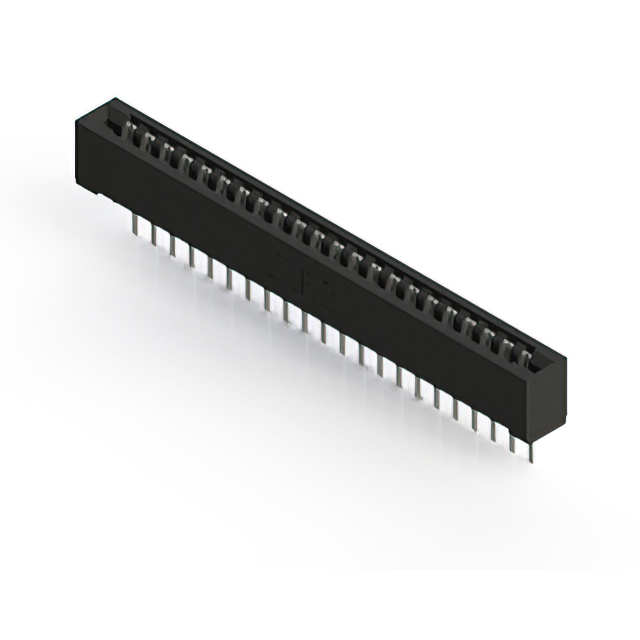

357-022-445-101

Active

EDAC Inc.

CONN EDGE SGL FML 22POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

357-022-445-101

Active

EDAC Inc.

CONN EDGE SGL FML 22POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	357-022-445-101

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	22 positions
Number of Positions/Bay/Row [custom]	22
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

357-022 Series

...

Part	Card Type	Pitch [x]	Pitch [x]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Gender	Read Out	Termination	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row [custom]	Contact Material	Material - Insulation	Number of Rows	Termination Rows	Color	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Features	Flange Feature	Contact Type	Contact Finish	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 357-022-558-178	Non Specified - Single Edge	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Single	Solder	Through Hole Right Angle	10 Áin	0.25 Ám	22	Copper Alloy	Polyester Thermoplastic	1	1	Black	22 positions	-40 °C	105 ░C	Card Guides	4-40 Flush Mount Threaded Insert Top Opening	Semi Bellows	Gold
EDAC Inc. 357-022-445-101	Non Specified - Single Edge	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Single	Wire Wrap	Through Hole			22	Copper Alloy	Polyester Thermoplastic	1	1	Black	22 positions	-40 °C	105 ░C			Semi Bellows	Tin
EDAC Inc. 357-022-560-207	Non Specified - Dual Edge	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Dual	Solder	Board Edge Straddle Mount	10 Áin	0.25 Ám	11	Copper Alloy	Polyester Thermoplastic	2	2	Black	22 positions	-40 °C	105 ░C	Card Extender	Flush Mount M3 Threaded Insert Top Opening	Semi Bellows	Gold
EDAC Inc. 357-022-559-112	Non Specified - Single Edge	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Single	Solder	Through Hole Right Angle	10 Áin	0.25 Ám	22	Copper Alloy	Polyester Thermoplastic	1	1	Black	22 positions	-40 °C	105 ░C		Flush Mount Side Opening Unthreaded	Semi Bellows	Gold	3.25 mm	0.128 "
EDAC Inc. 357-022-527-158	Non Specified - Single Edge	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Single	Solder	Through Hole	10 Áin	0.25 Ám	22	Copper Alloy	Polyester Thermoplastic	1	1	Black	22 positions	-40 °C	105 ░C	Card Guides	4-40 Flush Mount Threaded Insert Top Opening	Semi Bellows	Gold
EDAC Inc. 357-022-459-104	Non Specified - Single Edge	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Single	Solder	Through Hole Right Angle			22	Copper Alloy	Polyester Thermoplastic	1	1	Black	22 positions	-40 °C	105 ░C		Flush Mount Top Opening Unthreaded	Semi Bellows	Tin	3.96 mm	0.156 in
EDAC Inc. 357-022-522-201	Non Specified - Dual Edge	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Dual	Solder	Through Hole	10 Áin	0.25 Ám	11	Copper Alloy	Polyester Thermoplastic	2	2	Black	22 positions	-40 °C	105 ░C			Semi Bellows	Gold
EDAC Inc. 357-022-531-112	Non Specified - Single Edge	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Single	Solder	Through Hole	10 Áin	0.25 Ám	22	Copper Alloy	Polyester Thermoplastic	1	1	Black	22 positions	-40 °C	105 ░C		Flush Mount Side Opening Unthreaded	Semi Bellows	Gold	3.25 mm	0.128 "
EDAC Inc. 357-022-531-168	Non Specified - Single Edge	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Single	Solder	Through Hole	10 Áin	0.25 Ám	22	Copper Alloy	Polyester Thermoplastic	1	1	Black	22 positions	-40 °C	105 ░C	Card Guides	4-40 Flush Mount Threaded Insert Top Opening	Semi Bellows	Gold
EDAC Inc. 357-022-524-258	Non Specified - Dual Edge	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Dual	Solder	Through Hole	10 Áin	0.25 Ám	11	Copper Alloy	Polyester Thermoplastic	2	2	Black	22 positions	-40 °C	105 ░C	Card Guides	4-40 Flush Mount Threaded Insert Top Opening	Semi Bellows	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 13.86

Description

General part information

357-022 Series

22 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Black
