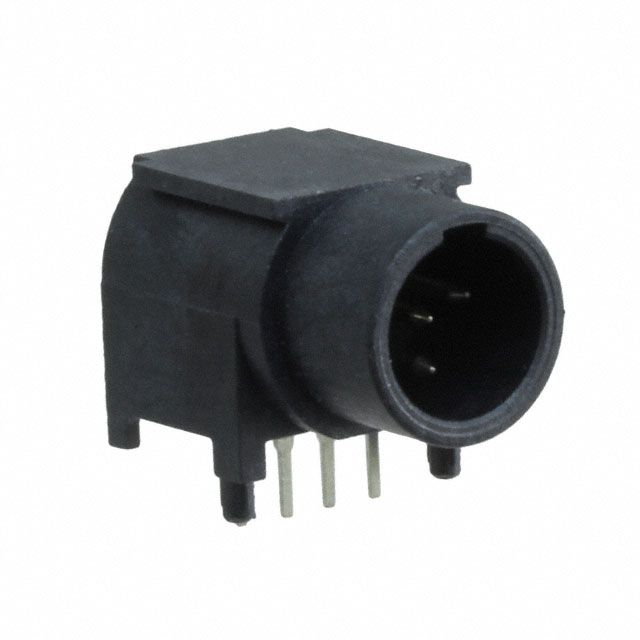

TRAPC4M1X

Active

Switchcraft Inc.

CONN XLR CONNECTOR M 4 POS 2.54MM SOLDER RA THRU-HOLE 4 TERMINAL 1 PORT BULK

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN XLR CONNECTOR M 4 POS 2.54MM SOLDER RA THRU-HOLE 4 TERMINAL 1 PORT BULK

Technical Specifications

Parameters and characteristics for this part

Specification	TRAPC4M1X

Applications	Medical, Testing Equipment & Measurement, Audio
Color	Black
Connector Type	Receptacle, Male Pins
Contact Material	Brass
Current Rating (Amps)	5 A
Fastening Type	Latch Lock
Features	Board Guide
Insert Material	Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Orientation	Keyed
Primary Material	Plastic
Shell Size - Insert	Mini XLR
Termination	Solder

Part	Mounting Type	Contact Material	Current Rating (Amps)	Applications	Primary Material	Shell Size - Insert	Insert Material	Fastening Type	Number of Positions	Features	Termination	Color	Connector Type	Orientation	Mounting Feature
Switchcraft Inc. TRAPC4MS1X	Through Hole Right Angle	Brass	5 A	Audio Medical Testing Equipment & Measurement	Plastic	Mini XLR	Thermoplastic	Latch Lock	4	Board Guide	Solder	Black	Male Pins Receptacle	Keyed
Switchcraft Inc. TRAPC4MX	Through Hole Right Angle	Brass	5 A	Audio Medical Testing Equipment & Measurement	Plastic	Mini XLR	Thermoplastic	Latch Lock	4	Board Guide	Solder	Black	Male Pins Receptacle	Keyed	Bulkhead - Front Side Nut
Switchcraft Inc. TRAPC4M	Through Hole Right Angle	Brass	5 A	Audio Medical Testing Equipment & Measurement	Plastic	Mini XLR	Thermoplastic	Latch Lock	4	Board Guide	Solder	Black	Male Pins Receptacle	Keyed	Bulkhead - Front Side Nut
Switchcraft Inc. TRAPC4M1X	Through Hole Right Angle	Brass	5 A	Audio Medical Testing Equipment & Measurement	Plastic	Mini XLR	Thermoplastic	Latch Lock	4	Board Guide	Solder	Black	Male Pins Receptacle	Keyed
Switchcraft Inc. TRAPC4MSX	Through Hole Right Angle	Brass	5 A	Audio Medical Testing Equipment & Measurement	Plastic	Mini XLR	Thermoplastic	Latch Lock	4	Board Guide	Solder	Black	Male Pins Receptacle	Keyed	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.71

General part information

4 Position Circular Connector Receptacle, Male Pins Solder
