TRAPC4MX

Active

Switchcraft Inc.

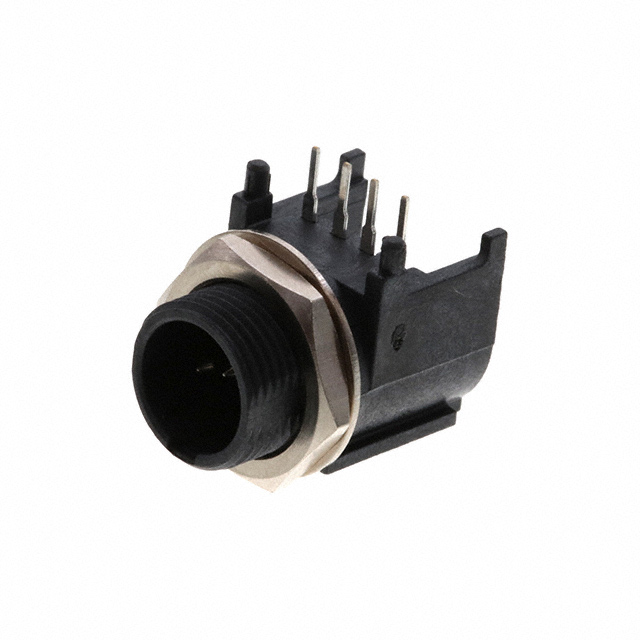

CONN RCPT MALE MINI XLR 4P SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE MINI XLR 4P SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	TRAPC4MX

Applications	Medical, Testing Equipment & Measurement, Audio
Color	Black
Connector Type	Receptacle, Male Pins
Contact Material	Brass
Current Rating (Amps)	5 A
Fastening Type	Latch Lock
Features	Board Guide
Insert Material	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Orientation	Keyed
Primary Material	Plastic
Shell Size - Insert	Mini XLR
Termination	Solder

Part	Mounting Type	Contact Material	Current Rating (Amps)	Applications	Primary Material	Shell Size - Insert	Insert Material	Fastening Type	Number of Positions	Features	Termination	Color	Connector Type	Orientation	Mounting Feature
Switchcraft Inc. TRAPC4MS1X	Through Hole Right Angle	Brass	5 A	Audio Medical Testing Equipment & Measurement	Plastic	Mini XLR	Thermoplastic	Latch Lock	4	Board Guide	Solder	Black	Male Pins Receptacle	Keyed
Switchcraft Inc. TRAPC4MX	Through Hole Right Angle	Brass	5 A	Audio Medical Testing Equipment & Measurement	Plastic	Mini XLR	Thermoplastic	Latch Lock	4	Board Guide	Solder	Black	Male Pins Receptacle	Keyed	Bulkhead - Front Side Nut
Switchcraft Inc. TRAPC4M	Through Hole Right Angle	Brass	5 A	Audio Medical Testing Equipment & Measurement	Plastic	Mini XLR	Thermoplastic	Latch Lock	4	Board Guide	Solder	Black	Male Pins Receptacle	Keyed	Bulkhead - Front Side Nut
Switchcraft Inc. TRAPC4M1X	Through Hole Right Angle	Brass	5 A	Audio Medical Testing Equipment & Measurement	Plastic	Mini XLR	Thermoplastic	Latch Lock	4	Board Guide	Solder	Black	Male Pins Receptacle	Keyed
Switchcraft Inc. TRAPC4MSX	Through Hole Right Angle	Brass	5 A	Audio Medical Testing Equipment & Measurement	Plastic	Mini XLR	Thermoplastic	Latch Lock	4	Board Guide	Solder	Black	Male Pins Receptacle	Keyed	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Solder
