PCB-C-10-SA-20

Active

Adam Tech

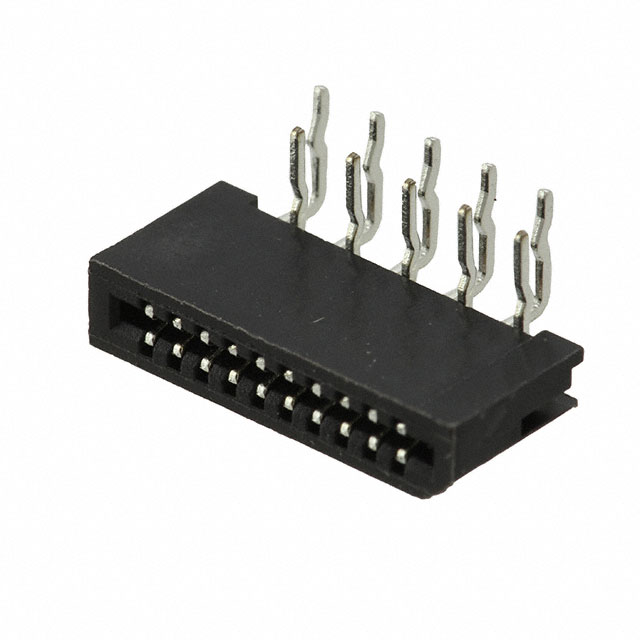

CONN FFC FPC 10POS 1MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

PCB-C-10-SA-20

Active

Adam Tech

CONN FFC FPC 10POS 1MM R/A

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PCB-C-10-SA-20

Cable End Type	Straight
Connector/Contact Type	Contacts, Top and Bottom
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board [z]	0.11 "
Height Above Board [z]	2.8 mm
Housing Color	Black
Housing Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Kinked Pin
Voltage Rating	50 V

PCB-C Series

Part	Number of Positions	Housing Material	FFC, FCB Thickness	Cable End Type	Pitch [x]	Pitch [x]	Housing Color	Flat Flex Type	Mounting Type	Features	Contact Finish	Current Rating (Amps)	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Connector/Contact Type	Material Flammability Rating	Voltage Rating	Height Above Board	Height Above Board	Height Above Board [z]	Height Above Board [z]
Adam Tech PCB-C-07-T-SMT	7	Thermoplastic	0.3 mm	Straight	0.039 in	1 mm	Black	FFC FPC	Surface Mount	Low Insertion Force (LIF)	Tin	0.5 A	Solder	85 °C	-55 °C	Phosphor Bronze	Contacts Vertical - 2 Sided	UL94 V-0
Adam Tech PCB-C-26-T-20	26	Thermoplastic	0.3 mm	Straight	0.039 in	1 mm	Black	FFC FPC	Through Hole	Low Insertion Force (LIF)	Tin	0.5 A	Kinked Pin	85 °C	-20 C	Phosphor Bronze	Contacts Vertical - 2 Sided	UL94 V-0	50 V	5.5 mm	0.217 in
Adam Tech PCB-C-18-SA-20	18	Thermoplastic	0.3 mm	Straight	0.039 in	1 mm	Black	FFC FPC	Through Hole Right Angle		Tin	0.5 A	Kinked Pin	85 °C	-20 C	Phosphor Bronze	Contacts Top and Bottom	UL94 V-0	50 V			0.11 "	2.8 mm
Adam Tech PCB-C5-22-SA-SMT	22 positions	Thermoplastic Glass Filled	0.3 mm	Straight	0.039 in	1 mm	Black	FFC FPC	Surface Mount Right Angle	Low Insertion Force (LIF)	Tin		Solder	85 °C	-25 °C	Copper Alloy	Contacts Top and Bottom	UL94 V-0				0.11 "	2.8 mm
Adam Tech PCB-C-20-SA-20	20	Thermoplastic	0.3 mm	Straight	0.039 in	1 mm	Black	FFC FPC	Through Hole Right Angle		Tin	0.5 A	Kinked Pin	85 °C	-20 C	Phosphor Bronze	Contacts Top and Bottom	UL94 V-0	50 V			0.11 "	2.8 mm
Adam Tech PCB-C-06-T-20	6	Thermoplastic	0.3 mm	Straight	0.039 in	1 mm	Black	FFC FPC	Through Hole	Low Insertion Force (LIF)	Tin	0.5 A	Kinked Pin	85 °C	-20 C	Phosphor Bronze	Contacts Vertical - 2 Sided	UL94 V-0	50 V	5.5 mm	0.217 in
Adam Tech PCB-C-08-T-SMT	8	Thermoplastic	0.3 mm	Straight	0.039 in	1 mm	Black	FFC FPC	Surface Mount	Low Insertion Force (LIF)	Tin	0.5 A	Solder	85 °C	-55 °C	Phosphor Bronze	Contacts Vertical - 2 Sided	UL94 V-0
Adam Tech PCB-C-05-SA-20		Thermoplastic	0.3 mm	Straight	0.039 in	1 mm	Black	FFC FPC	Through Hole Right Angle		Tin	0.5 A	Kinked Pin	85 °C	-20 C	Phosphor Bronze	Contacts Top and Bottom	UL94 V-0	50 V			0.11 "	2.8 mm
Adam Tech PCB-C-09-SA-20	9	Thermoplastic	0.3 mm	Straight	0.039 in	1 mm	Black	FFC FPC	Through Hole Right Angle		Tin	0.5 A	Kinked Pin	85 °C	-20 C	Phosphor Bronze	Contacts Top and Bottom	UL94 V-0	50 V			0.11 "	2.8 mm
Adam Tech PCB-C-10-SA-20	10	Thermoplastic	0.3 mm	Straight	0.039 in	1 mm	Black	FFC FPC	Through Hole Right Angle		Tin	0.5 A	Kinked Pin	85 °C	-20 C	Phosphor Bronze	Contacts Top and Bottom	UL94 V-0	50 V			0.11 "	2.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	5029	$ 0.33

Description

General part information

PCB-C Series

10 Position FFC, FPC Connector Contacts, Top and Bottom 0.039" (1.00mm) Through Hole, Right Angle
