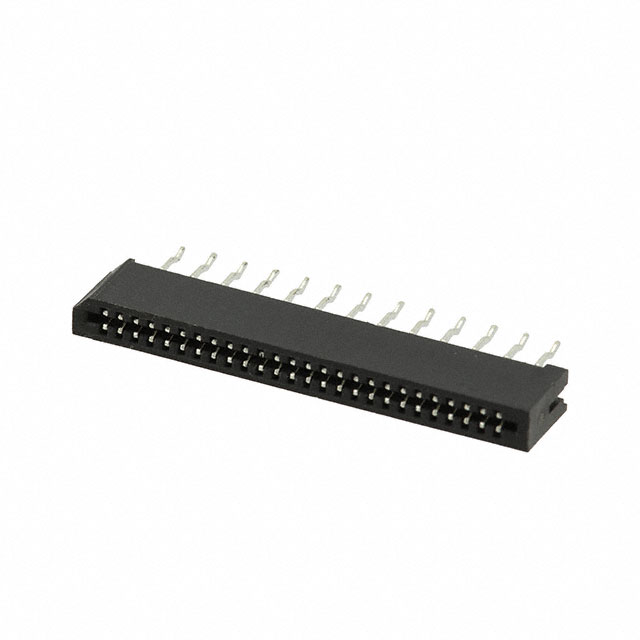

PCB-C-26-T-20

Active

Adam Tech

CONN FFC FPC VERT 26POS 1MM PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

PCB-C-26-T-20

Active

Adam Tech

CONN FFC FPC VERT 26POS 1MM PCB

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PCB-C-26-T-20

Cable End Type	Straight
Connector/Contact Type	Contacts, Vertical - 2 Sided
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
Features	Low Insertion Force (LIF)
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board	5.5 mm
Height Above Board	0.217 in
Housing Color	Black
Housing Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	26
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Kinked Pin
Voltage Rating	50 V

PCB-C Series

Part	Number of Positions	Housing Material	FFC, FCB Thickness	Cable End Type	Pitch [x]	Pitch [x]	Housing Color	Flat Flex Type	Mounting Type	Features	Contact Finish	Current Rating (Amps)	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Connector/Contact Type	Material Flammability Rating	Voltage Rating	Height Above Board	Height Above Board	Height Above Board [z]	Height Above Board [z]
Adam Tech PCB-C-07-T-SMT	7	Thermoplastic	0.3 mm	Straight	0.039 in	1 mm	Black	FFC FPC	Surface Mount	Low Insertion Force (LIF)	Tin	0.5 A	Solder	85 °C	-55 °C	Phosphor Bronze	Contacts Vertical - 2 Sided	UL94 V-0
Adam Tech PCB-C-26-T-20	26	Thermoplastic	0.3 mm	Straight	0.039 in	1 mm	Black	FFC FPC	Through Hole	Low Insertion Force (LIF)	Tin	0.5 A	Kinked Pin	85 °C	-20 C	Phosphor Bronze	Contacts Vertical - 2 Sided	UL94 V-0	50 V	5.5 mm	0.217 in
Adam Tech PCB-C-18-SA-20	18	Thermoplastic	0.3 mm	Straight	0.039 in	1 mm	Black	FFC FPC	Through Hole Right Angle		Tin	0.5 A	Kinked Pin	85 °C	-20 C	Phosphor Bronze	Contacts Top and Bottom	UL94 V-0	50 V			0.11 "	2.8 mm
Adam Tech PCB-C5-22-SA-SMT	22 positions	Thermoplastic Glass Filled	0.3 mm	Straight	0.039 in	1 mm	Black	FFC FPC	Surface Mount Right Angle	Low Insertion Force (LIF)	Tin		Solder	85 °C	-25 °C	Copper Alloy	Contacts Top and Bottom	UL94 V-0				0.11 "	2.8 mm
Adam Tech PCB-C-20-SA-20	20	Thermoplastic	0.3 mm	Straight	0.039 in	1 mm	Black	FFC FPC	Through Hole Right Angle		Tin	0.5 A	Kinked Pin	85 °C	-20 C	Phosphor Bronze	Contacts Top and Bottom	UL94 V-0	50 V			0.11 "	2.8 mm
Adam Tech PCB-C-06-T-20	6	Thermoplastic	0.3 mm	Straight	0.039 in	1 mm	Black	FFC FPC	Through Hole	Low Insertion Force (LIF)	Tin	0.5 A	Kinked Pin	85 °C	-20 C	Phosphor Bronze	Contacts Vertical - 2 Sided	UL94 V-0	50 V	5.5 mm	0.217 in
Adam Tech PCB-C-08-T-SMT	8	Thermoplastic	0.3 mm	Straight	0.039 in	1 mm	Black	FFC FPC	Surface Mount	Low Insertion Force (LIF)	Tin	0.5 A	Solder	85 °C	-55 °C	Phosphor Bronze	Contacts Vertical - 2 Sided	UL94 V-0
Adam Tech PCB-C-05-SA-20		Thermoplastic	0.3 mm	Straight	0.039 in	1 mm	Black	FFC FPC	Through Hole Right Angle		Tin	0.5 A	Kinked Pin	85 °C	-20 C	Phosphor Bronze	Contacts Top and Bottom	UL94 V-0	50 V			0.11 "	2.8 mm
Adam Tech PCB-C-09-SA-20	9	Thermoplastic	0.3 mm	Straight	0.039 in	1 mm	Black	FFC FPC	Through Hole Right Angle		Tin	0.5 A	Kinked Pin	85 °C	-20 C	Phosphor Bronze	Contacts Top and Bottom	UL94 V-0	50 V			0.11 "	2.8 mm
Adam Tech PCB-C-10-SA-20	10	Thermoplastic	0.3 mm	Straight	0.039 in	1 mm	Black	FFC FPC	Through Hole Right Angle		Tin	0.5 A	Kinked Pin	85 °C	-20 C	Phosphor Bronze	Contacts Top and Bottom	UL94 V-0	50 V			0.11 "	2.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.33
		10	$ 1.01
		25	$ 0.91
		50	$ 0.84
		100	$ 0.78
		250	$ 0.71
		500	$ 0.65

Description

General part information

PCB-C Series

26 Position FFC, FPC Connector Contacts, Vertical - 2 Sided 0.039" (1.00mm) Through Hole
