SNP12A10M4

Active

HELLERMANNTYTON

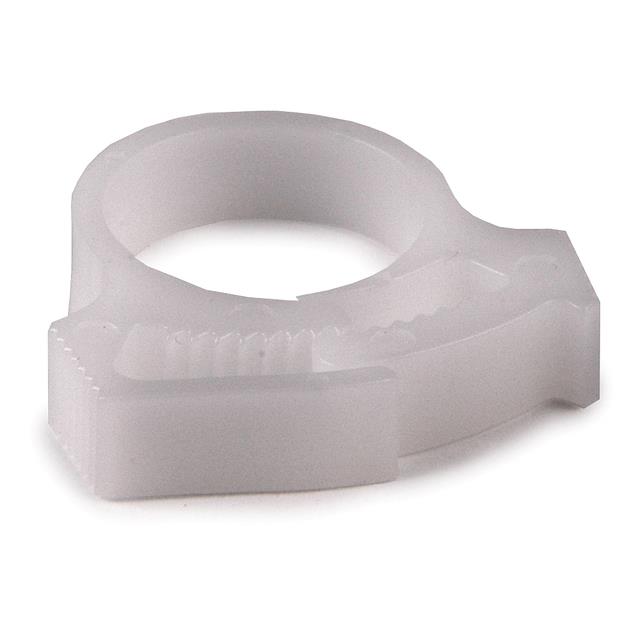

SNAPPER HOSE CLAMP, .61" .72" BUNDLE DIAMETER, POM, WHITE, 1000/PKG

Search across all available documentation for this part.

Active

HELLERMANNTYTON

SNAPPER HOSE CLAMP, .61" .72" BUNDLE DIAMETER, POM, WHITE, 1000/PKG

Technical Specifications

Parameters and characteristics for this part

Specification	SNP12A10M4

Color	White
Length [Max]	1.152 in, 29.26 mm
Length [Min]	0.802 in, 20.37 mm
Material	Polyacetal (POM)
Material Flammability Rating	UL94 HB
Material Thickness	0.07 in
Material Thickness	1.78 mm
Opening Size [Max] [z]	0.704 in
Opening Size [Max] [z]	17.88 mm
Opening Size [Min] [z]	15.62 mm
Opening Size [Min] [z]	0.615 in
Type	Clamp, Hose
Type Attributes	Push-Fit
Width	5.92 mm
Width [x]	0.233 in

Part	Material Thickness	Material Thickness	Type	Type Attributes	Material Flammability Rating	Width	Width [x]	Opening Size [Min] [z]	Opening Size [Max] [z]	Opening Size [Max] [z]	Opening Size [Min] [z]	Material	Length [Max]	Length [Min]	Color	Opening Size [Max] [z]	Opening Size [Min] [z]	Features	Length [Max]	Length [Min]
HELLERMANNTYTON SNP12A10M4	0.07 in	1.78 mm	Clamp Hose	Push-Fit	UL94 HB	5.92 mm	0.233 in	15.62 mm	0.704 in	17.88 mm	0.615 in	Polyacetal (POM)	1.152 in 29.26 mm	0.802 in 20.37 mm	White
HELLERMANNTYTON SNP12AGHS0M4	0.07 in	1.78 mm	Clamp Hose	Push-Fit	UL94 HB	5.92 mm	0.233 in	15.9 mm		18.19 mm		Polyamide (PA66) Nylon 6/6 Glass Filled	1.172 in	0.816 in	Black	0.716 in	0.626 in	Heat Stabilized Impact Resistant	29.77 mm	20.73 mm
