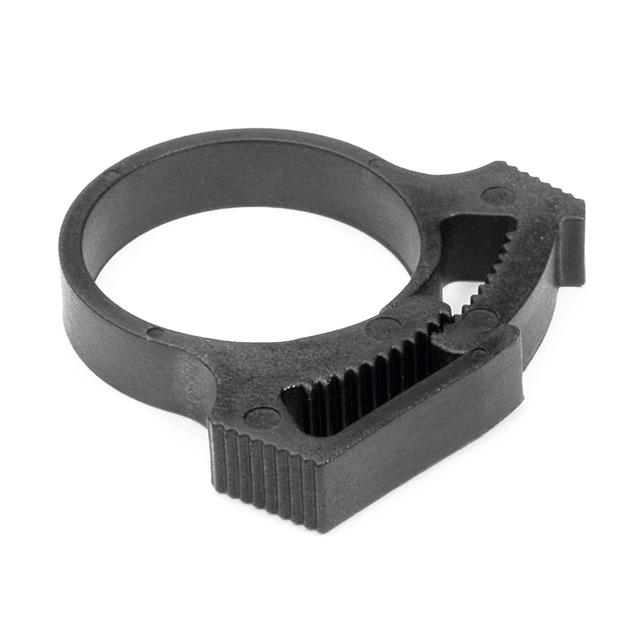

SNP12AGHS0M4

Active

HELLERMANNTYTON

CBL CLIP HOSE BLACK

Search across all available documentation for this part.

Active

HELLERMANNTYTON

CBL CLIP HOSE BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	SNP12AGHS0M4

Color	Black
Features	Impact Resistant, Heat Stabilized
Length [Max]	29.77 mm
Length [Max]	1.172 in
Length [Min]	20.73 mm
Length [Min]	0.816 in
Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 HB
Material Thickness	0.07 in
Material Thickness	1.78 mm
Opening Size [Max] [z]	0.716 in
Opening Size [Max] [z]	18.19 mm
Opening Size [Min] [z]	0.626 in
Opening Size [Min] [z]	15.9 mm
Type	Clamp, Hose
Type Attributes	Push-Fit
Width	5.92 mm
Width [x]	0.233 in

Part	Material Thickness	Material Thickness	Type	Type Attributes	Material Flammability Rating	Width	Width [x]	Opening Size [Min] [z]	Opening Size [Max] [z]	Opening Size [Max] [z]	Opening Size [Min] [z]	Material	Length [Max]	Length [Min]	Color	Opening Size [Max] [z]	Opening Size [Min] [z]	Features	Length [Max]	Length [Min]
HELLERMANNTYTON SNP12A10M4	0.07 in	1.78 mm	Clamp Hose	Push-Fit	UL94 HB	5.92 mm	0.233 in	15.62 mm	0.704 in	17.88 mm	0.615 in	Polyacetal (POM)	1.152 in 29.26 mm	0.802 in 20.37 mm	White
HELLERMANNTYTON SNP12AGHS0M4	0.07 in	1.78 mm	Clamp Hose	Push-Fit	UL94 HB	5.92 mm	0.233 in	15.9 mm		18.19 mm		Polyamide (PA66) Nylon 6/6 Glass Filled	1.172 in	0.816 in	Black	0.716 in	0.626 in	Heat Stabilized Impact Resistant	29.77 mm	20.73 mm
