307-017-557-103

Active

EDAC Inc.

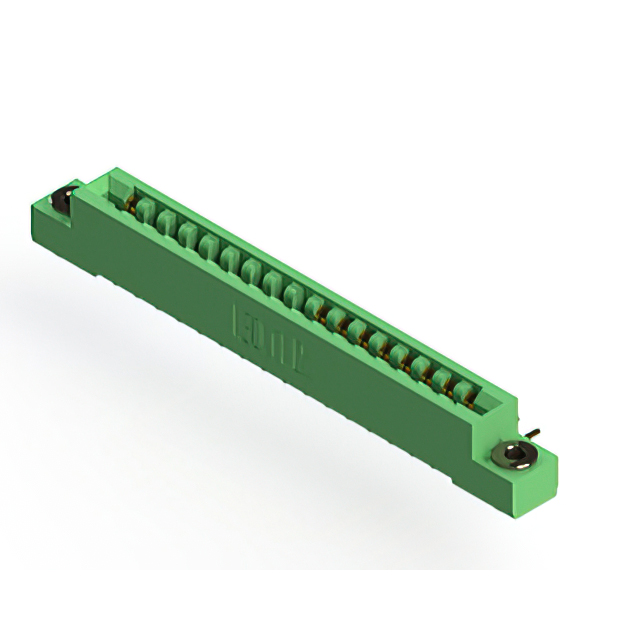

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 17 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

307-017-557-103

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 17 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-017-557-103

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	34
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Wire Wrap
Termination Rows	1

307-017 Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish Thickness	Contact Finish Thickness	Features	Termination Rows	Flange Feature	Material - Insulation	Card Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Pitch [x]	Pitch [x]	Contact Type	Read Out	Number of Rows	Gender	Mounting Type	Contact Material	Contact Finish	Flange Feature [diameter]	Flange Feature [diameter]	Number of Positions
EDAC Inc. 307-017-558-158	-40 °C	105 ░C	Solder	10 Áin	0.25 Ám	Card Guides	1	4-40 Flush Mount Threaded Insert Top Opening	Polyester Thermoplastic	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	0.156 in	3.96 mm	Semi Bellows	Single	1	Female	Through Hole Right Angle	Copper Alloy	Gold
EDAC Inc. 307-017-545-158	-40 °C	105 ░C	Wire Wrap	10 Áin	0.25 Ám	Card Guides	1	4-40 Flush Mount Threaded Insert Top Opening	Polyester Thermoplastic	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	0.156 in	3.96 mm	Semi Bellows	Single	1	Female	Through Hole	Copper Alloy	Gold
EDAC Inc. 307-017-557-103	-40 °C	105 ░C	Wire Wrap	10 Áin	0.25 Ám		1	Floating Bobbin Flush Mount	Polyester Thermoplastic	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	0.156 in	3.96 mm	Semi Bellows	Dual	2	Female	Through Hole Right Angle	Copper Alloy	Gold	0.116 in	2.95 mm	34
EDAC Inc. 307-017-427-101	-40 °C	105 ░C	Solder				1		Polyester Thermoplastic	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	0.156 in	3.96 mm	Semi Bellows	Single	1	Female	Through Hole	Copper Alloy	Tin
EDAC Inc. 307-017-445-103	-40 °C	105 ░C	Wire Wrap				1	Floating Bobbin Flush Mount	Polyester Thermoplastic	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	0.156 in	3.96 mm	Semi Bellows	Single	1	Female	Through Hole	Copper Alloy	Tin	0.116 in	2.95 mm
EDAC Inc. 307-017-431-102	-40 °C	105 ░C	Solder				1	Flush Mount Top Opening Unthreaded	Polyester Thermoplastic	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	0.156 in	3.96 mm	Semi Bellows	Single	1	Female	Through Hole	Copper Alloy	Tin	0.128 "	3.25 mm
EDAC Inc. 307-017-427-107	-40 °C	105 ░C	Solder				1	Flush Mount M3 Threaded Insert Top Opening	Polyester Thermoplastic	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	0.156 in	3.96 mm	Semi Bellows	Single	1	Female	Through Hole	Copper Alloy	Tin
EDAC Inc. 307-017-525-104	-40 °C	105 ░C	Solder	10 Áin	0.25 Ám		1	Flush Mount Top Opening Unthreaded	Polyester Thermoplastic	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	0.156 in	3.96 mm	Semi Bellows	Single	1	Female	Through Hole	Copper Alloy	Gold	0.156 in	3.96 mm
EDAC Inc. 307-017-547-168	-40 °C	105 ░C	Wire Wrap	10 Áin	0.25 Ám	Card Guides	1	4-40 Flush Mount Threaded Insert Top Opening	Polyester Thermoplastic	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	0.156 in	3.96 mm	Semi Bellows	Single	1	Female	Through Hole	Copper Alloy	Gold
EDAC Inc. 307-017-501-102	-40 °C	105 ░C	Solder Eyelet(s)	10 Áin	0.25 Ám		1	Flush Mount Top Opening Unthreaded	Polyester Thermoplastic	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	0.156 in	3.96 mm	Semi Bellows	Dual	2	Female	Through Hole	Copper Alloy	Gold	0.128 "	3.25 mm	34

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 22.86
Newark	Each	1	$ 28.79
		100	$ 17.29
		250	$ 16.04
		500	$ 14.88
		1000	$ 11.42

Description

General part information

307-017 Series

34 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
