307-017-445-103

Active

EDAC Inc.

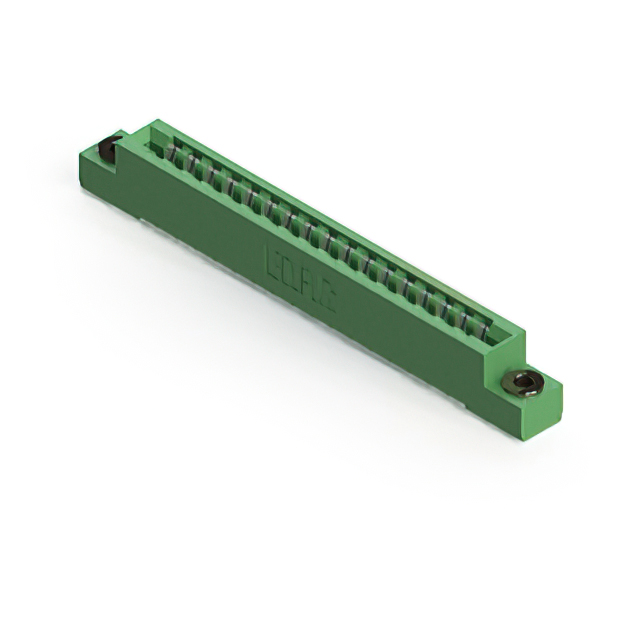

CARD EDGE CONNECTOR, 17 CONTACT(S), 1 ROW(S), FEMALE, 0.156 INCH PITCH, WIRE WRAP TERMINAL, HOLE 0.116, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

307-017-445-103

Active

EDAC Inc.

CARD EDGE CONNECTOR, 17 CONTACT(S), 1 ROW(S), FEMALE, 0.156 INCH PITCH, WIRE WRAP TERMINAL, HOLE 0.116, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-017-445-103

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

307-017 Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish Thickness	Contact Finish Thickness	Features	Termination Rows	Flange Feature	Material - Insulation	Card Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Pitch [x]	Pitch [x]	Contact Type	Read Out	Number of Rows	Gender	Mounting Type	Contact Material	Contact Finish	Flange Feature [diameter]	Flange Feature [diameter]	Number of Positions
EDAC Inc. 307-017-558-158	-40 °C	105 ░C	Solder	10 Áin	0.25 Ám	Card Guides	1	4-40 Flush Mount Threaded Insert Top Opening	Polyester Thermoplastic	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	0.156 in	3.96 mm	Semi Bellows	Single	1	Female	Through Hole Right Angle	Copper Alloy	Gold
EDAC Inc. 307-017-545-158	-40 °C	105 ░C	Wire Wrap	10 Áin	0.25 Ám	Card Guides	1	4-40 Flush Mount Threaded Insert Top Opening	Polyester Thermoplastic	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	0.156 in	3.96 mm	Semi Bellows	Single	1	Female	Through Hole	Copper Alloy	Gold
EDAC Inc. 307-017-557-103	-40 °C	105 ░C	Wire Wrap	10 Áin	0.25 Ám		1	Floating Bobbin Flush Mount	Polyester Thermoplastic	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	0.156 in	3.96 mm	Semi Bellows	Dual	2	Female	Through Hole Right Angle	Copper Alloy	Gold	0.116 in	2.95 mm	34
EDAC Inc. 307-017-427-101	-40 °C	105 ░C	Solder				1		Polyester Thermoplastic	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	0.156 in	3.96 mm	Semi Bellows	Single	1	Female	Through Hole	Copper Alloy	Tin
EDAC Inc. 307-017-445-103	-40 °C	105 ░C	Wire Wrap				1	Floating Bobbin Flush Mount	Polyester Thermoplastic	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	0.156 in	3.96 mm	Semi Bellows	Single	1	Female	Through Hole	Copper Alloy	Tin	0.116 in	2.95 mm
EDAC Inc. 307-017-431-102	-40 °C	105 ░C	Solder				1	Flush Mount Top Opening Unthreaded	Polyester Thermoplastic	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	0.156 in	3.96 mm	Semi Bellows	Single	1	Female	Through Hole	Copper Alloy	Tin	0.128 "	3.25 mm
EDAC Inc. 307-017-427-107	-40 °C	105 ░C	Solder				1	Flush Mount M3 Threaded Insert Top Opening	Polyester Thermoplastic	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	0.156 in	3.96 mm	Semi Bellows	Single	1	Female	Through Hole	Copper Alloy	Tin
EDAC Inc. 307-017-525-104	-40 °C	105 ░C	Solder	10 Áin	0.25 Ám		1	Flush Mount Top Opening Unthreaded	Polyester Thermoplastic	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	0.156 in	3.96 mm	Semi Bellows	Single	1	Female	Through Hole	Copper Alloy	Gold	0.156 in	3.96 mm
EDAC Inc. 307-017-547-168	-40 °C	105 ░C	Wire Wrap	10 Áin	0.25 Ám	Card Guides	1	4-40 Flush Mount Threaded Insert Top Opening	Polyester Thermoplastic	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	0.156 in	3.96 mm	Semi Bellows	Single	1	Female	Through Hole	Copper Alloy	Gold
EDAC Inc. 307-017-501-102	-40 °C	105 ░C	Solder Eyelet(s)	10 Áin	0.25 Ám		1	Flush Mount Top Opening Unthreaded	Polyester Thermoplastic	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	0.156 in	3.96 mm	Semi Bellows	Dual	2	Female	Through Hole	Copper Alloy	Gold	0.128 "	3.25 mm	34

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 13.85

Description

General part information

307-017 Series

17 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Green
