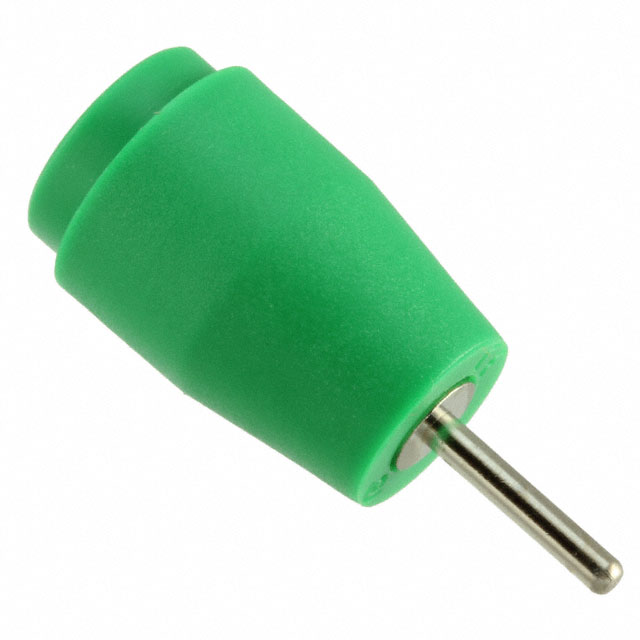

CT3149-5

Active

Cal Test Electronics

BANANA TEST CONNECTOR, JACK, PANEL MOUNT, 25 A, 1 KV, NICKEL PLATED CONTACTS, GREEN

Search across all available documentation for this part.

Active

Cal Test Electronics

BANANA TEST CONNECTOR, JACK, PANEL MOUNT, 25 A, 1 KV, NICKEL PLATED CONTACTS, GREEN

Technical Specifications

Parameters and characteristics for this part

Part	Body Material	Plug/Mating Plug Diameter	Insulation	Contact Material	Color	Termination	Type	Contact Finish	Mounting Type	Gender	Operating Temperature [Min]	Operating Temperature [Max]
Cal Test Electronics CT3149-6	Polyoxymethylene (POM)	Standard Banana	Mating End Insulated	Brass	Blue	Solder	Banana Jack	Nickel	Panel Mount Through Hole	Female	-20 C	80 C
Cal Test Electronics CT3149-7	Polyoxymethylene (POM)	Standard Banana	Mating End Insulated	Brass	Purple	Solder	Banana Jack	Nickel	Panel Mount Through Hole	Female	-20 C	80 C
Cal Test Electronics CT3149-4	Polyoxymethylene (POM)	Standard Banana	Mating End Insulated	Brass	Yellow	Solder	Banana Jack	Nickel	Panel Mount Through Hole	Female	-20 C	80 C
Cal Test Electronics CT3149-5	Polyoxymethylene (POM)	Standard Banana	Mating End Insulated	Brass	Green	Solder	Banana Jack	Nickel	Panel Mount Through Hole	Female	-20 C	80 C
Cal Test Electronics CT3149-2	Polyoxymethylene (POM)	Standard Banana	Mating End Insulated	Brass	Red	Solder	Banana Jack	Nickel	Panel Mount Through Hole	Female	-20 C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.70
Newark	Each	1	$ 1.75

General part information

Banana Jack Connector Standard Banana Solder Green
