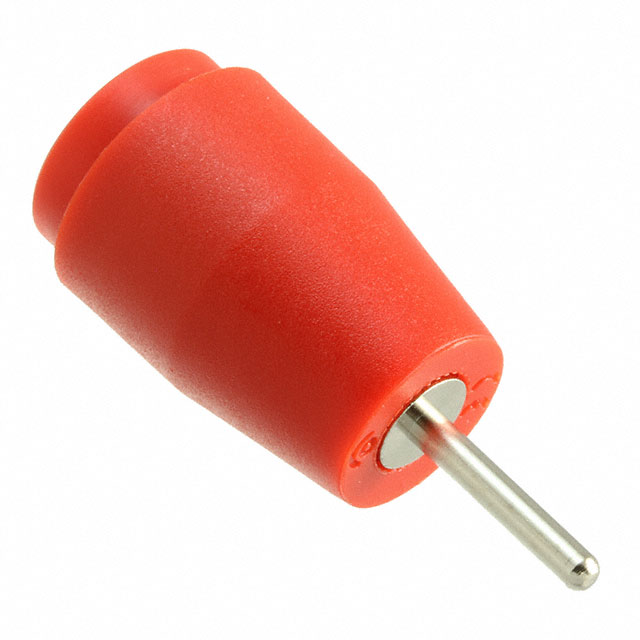

CT3149-2

Active

Cal Test Electronics

CONN BANANA JACK SOLDER RED

Search across all available documentation for this part.

Active

Cal Test Electronics

CONN BANANA JACK SOLDER RED

Technical Specifications

Parameters and characteristics for this part

Part	Body Material	Plug/Mating Plug Diameter	Insulation	Contact Material	Color	Termination	Type	Contact Finish	Mounting Type	Gender	Operating Temperature [Min]	Operating Temperature [Max]
Cal Test Electronics CT3149-6	Polyoxymethylene (POM)	Standard Banana	Mating End Insulated	Brass	Blue	Solder	Banana Jack	Nickel	Panel Mount Through Hole	Female	-20 C	80 C
Cal Test Electronics CT3149-7	Polyoxymethylene (POM)	Standard Banana	Mating End Insulated	Brass	Purple	Solder	Banana Jack	Nickel	Panel Mount Through Hole	Female	-20 C	80 C
Cal Test Electronics CT3149-4	Polyoxymethylene (POM)	Standard Banana	Mating End Insulated	Brass	Yellow	Solder	Banana Jack	Nickel	Panel Mount Through Hole	Female	-20 C	80 C
Cal Test Electronics CT3149-5	Polyoxymethylene (POM)	Standard Banana	Mating End Insulated	Brass	Green	Solder	Banana Jack	Nickel	Panel Mount Through Hole	Female	-20 C	80 C
Cal Test Electronics CT3149-2	Polyoxymethylene (POM)	Standard Banana	Mating End Insulated	Brass	Red	Solder	Banana Jack	Nickel	Panel Mount Through Hole	Female	-20 C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.70

General part information

Banana Jack Connector Standard Banana Solder Red
