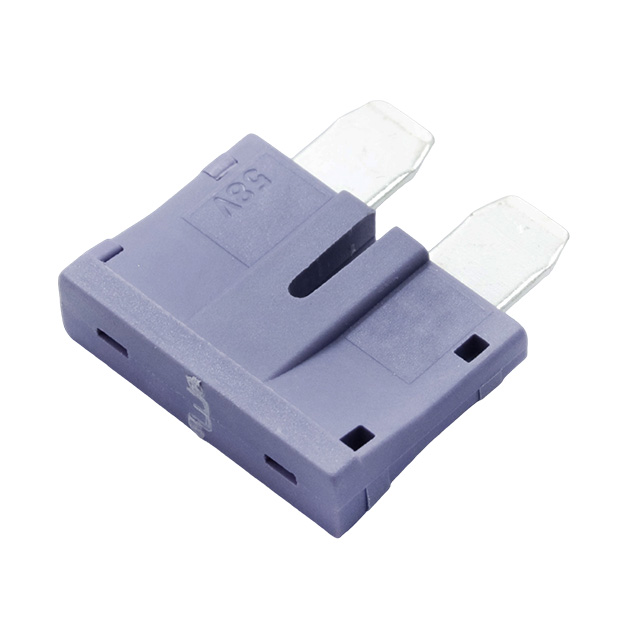

APR58-UL-3A

Active

OptiFuse

FUSE AUTO 3A 58VDC BLADE ATO/ATC

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 3A 58VDC BLADE ATO/ATC

Technical Specifications

Parameters and characteristics for this part

Specification	APR58-UL-3A

Approval Agency	cURus, UL 248
Breaking Capacity @ Rated Voltage	1 kA
Color	Violet
Current Rating (Amps)	3 A
DC Cold Resistance	0.11 Ohms
Fuse Type	Automotive
Mounting Type	Requires Holder
Package / Case	ATO, Blade, ATC
Response Time	Fast Blow
Size / Dimension [x]	0.748 in
Size / Dimension [x]	19 mm
Size / Dimension [y]	0.197 "
Size / Dimension [y]	5 mm
Size / Dimension [z]	0.531 in
Size / Dimension [z]	13.5 mm
Voltage Rating - DC	58 VDC

Part	Mounting Type	Melting I˛t	Fuse Type	Current Rating (Amps)	Breaking Capacity @ Rated Voltage	Response Time	Approval Agency	Color	Voltage Rating - DC	DC Cold Resistance	Package / Case	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Melting I²t
OptiFuse APR58-UL-500MA	Requires Holder	0.3	Automotive	0.5 A	1 kA	Fast Blow	cURus UL 248	Dark Blue	58 VDC	150 mOhms	ATC ATO Blade	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm
OptiFuse APR58-UL-3A	Requires Holder		Automotive	3 A	1 kA	Fast Blow	cURus UL 248	Violet	58 VDC	0.11 Ohms	ATC ATO Blade	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm
OptiFuse APR58-UL-2A	Requires Holder		Automotive	2 A	1 kA	Fast Blow	cURus UL 248	Gray	58 VDC	0.12 Ohms	ATC ATO Blade	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	9.6
OptiFuse APR58-UL-10A	Requires Holder		Automotive	10 A	1 kA	Fast Blow	cURus UL 248	Red	58 VDC	0.09 Ohms	ATC ATO Blade	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	210 I²t
OptiFuse APR58-UL-40A	Requires Holder		Automotive	40 A	1 kA	Fast Blow	cURus UL 248		58 VDC	0.07 Ohms	ATC ATO Blade	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	3200
OptiFuse APR58-UL-4A	Requires Holder		Automotive	4 A	1 kA	Fast Blow	cURus UL 248	Pink	58 VDC	0.11 Ohms	ATC ATO Blade	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	36.8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.52

General part information

3 A AC 58 V DC Fuse Automotive Requires Holder Blade, ATO/ATC
