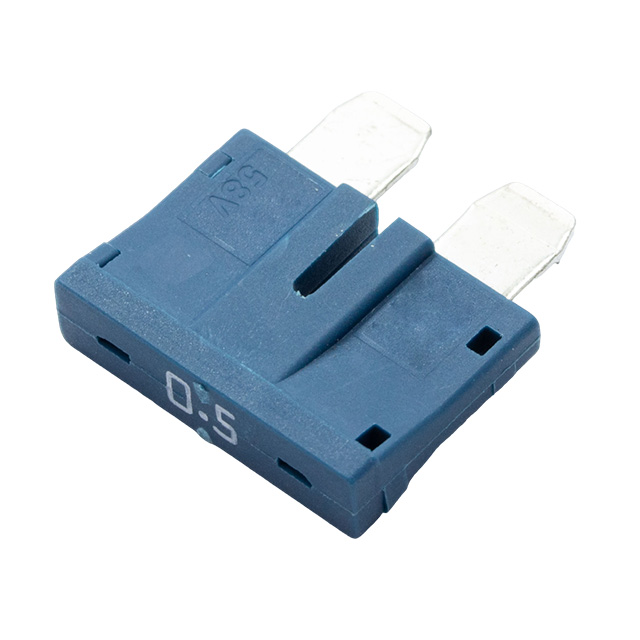

APR58-UL-500MA
ActiveOptiFuse
FUSE AUTO 500MA 58VDC BLADE ATO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
APR58-UL-500MA
ActiveOptiFuse
FUSE AUTO 500MA 58VDC BLADE ATO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | APR58-UL-500MA |
|---|---|
| Approval Agency | cURus, UL 248 |
| Breaking Capacity @ Rated Voltage | 1 kA |
| Color | Dark Blue |
| Current Rating (Amps) | 0.5 A |
| DC Cold Resistance | 150 mOhms |
| Fuse Type | Automotive |
| Melting I˛t | 0.3 |
| Mounting Type | Requires Holder |
| Package / Case | ATO, Blade, ATC |
| Response Time | Fast Blow |
| Size / Dimension [x] | 0.748 in |
| Size / Dimension [x] | 19 mm |
| Size / Dimension [y] | 0.197 " |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [z] | 0.531 in |
| Size / Dimension [z] | 13.5 mm |
| Voltage Rating - DC | 58 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.31 | |
| 10 | $ 3.22 | |||
| 25 | $ 3.13 | |||
| 50 | $ 2.64 | |||
| 100 | $ 2.16 | |||
| 250 | $ 1.95 | |||
| 500 | $ 1.64 | |||
| 1000 | $ 1.43 | |||
Description
General part information
APR58 Series
500 mA AC 58 V DC Fuse Automotive Requires Holder Blade, ATO/ATC
