1411171

Active

Phoenix Contact

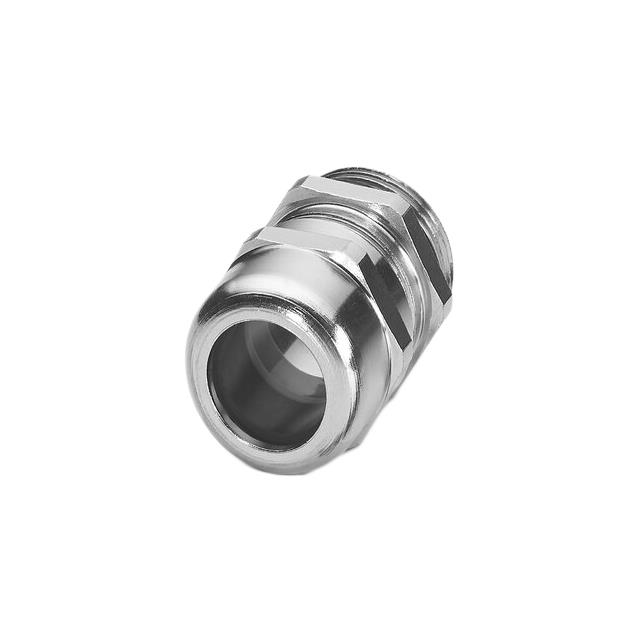

CABLE GLAND 4-8MM PG9 BRASS

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 4-8MM PG9 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	1411171

Color	Silver
Includes	O-Ring, Seal
Ingress Protection	IP66, IP68, IP69
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	8 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.315 in
Outside Cable Diameter (Min) [Min]	0.157 in
Outside Cable Diameter (Min) [Min]	4 mm
Thread Length	0.236 in
Thread Length	6 mm
Thread Size	PG9
Type	Cable Gland

Part	Thread Size	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Includes	Operating Temperature [Max]	Operating Temperature [Min]	Color	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Thread Length	Thread Length	Type	Material
Phoenix Contact 1424486	PG9	IP68 - Dust Tight Waterproof	8 mm	0.315 in	Seal	100 °C	-20 C	Gray	0.157 in	4 mm	8 mm	0.315 in	Cable Gland	Polyamide (PA) Nylon
Phoenix Contact 1424496	PG9	IP68 - Dust Tight Waterproof	8 mm	0.315 in	Seal	100 °C	-40 °C	Black	0.157 in	4 mm	8 mm	0.315 in	Cable Gland	Polyamide (PA) Nylon
Phoenix Contact 1411171	PG9	IP66 IP68 IP69	8 mm	0.315 in	O-Ring Seal	100 °C	-40 °C	Silver	0.157 in	4 mm	6 mm	0.236 in	Cable Gland	Brass Nickel Plated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated PG9 Silver
