1424486

Active

Phoenix Contact

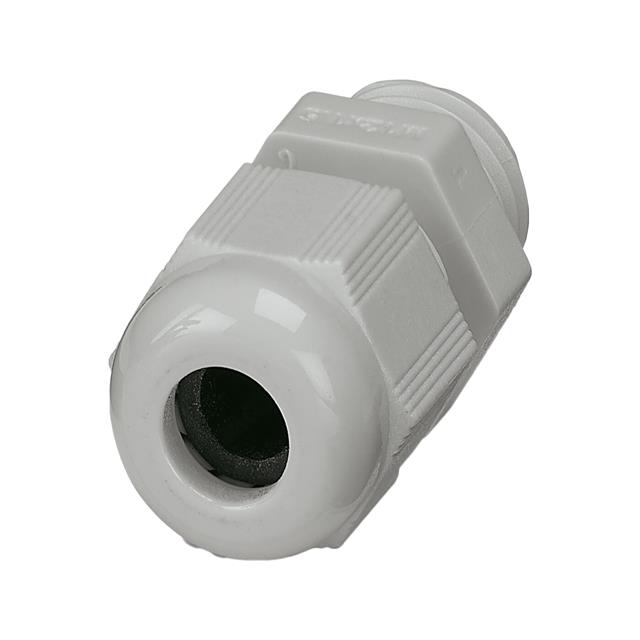

CABLE GLAND 4-8MM PG9 POLYAMIDE

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 4-8MM PG9 POLYAMIDE

Technical Specifications

Parameters and characteristics for this part

Specification	1424486

Color	Gray
Includes	Seal
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	8 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.315 in
Outside Cable Diameter (Min) [Min]	0.157 in
Outside Cable Diameter (Min) [Min]	4 mm
Thread Length	8 mm
Thread Length	0.315 in
Thread Size	PG9
Type	Cable Gland

Part	Thread Size	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Includes	Operating Temperature [Max]	Operating Temperature [Min]	Color	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Thread Length	Thread Length	Type	Material
Phoenix Contact 1424486	PG9	IP68 - Dust Tight Waterproof	8 mm	0.315 in	Seal	100 °C	-20 C	Gray	0.157 in	4 mm	8 mm	0.315 in	Cable Gland	Polyamide (PA) Nylon
Phoenix Contact 1424496	PG9	IP68 - Dust Tight Waterproof	8 mm	0.315 in	Seal	100 °C	-40 °C	Black	0.157 in	4 mm	8 mm	0.315 in	Cable Gland	Polyamide (PA) Nylon
Phoenix Contact 1411171	PG9	IP66 IP68 IP69	8 mm	0.315 in	O-Ring Seal	100 °C	-40 °C	Silver	0.157 in	4 mm	6 mm	0.236 in	Cable Gland	Brass Nickel Plated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.58

General part information

Cable Gland Polyamide (PA), Nylon PG9 Gray
