09310006101

Active

HARTING Technology Group

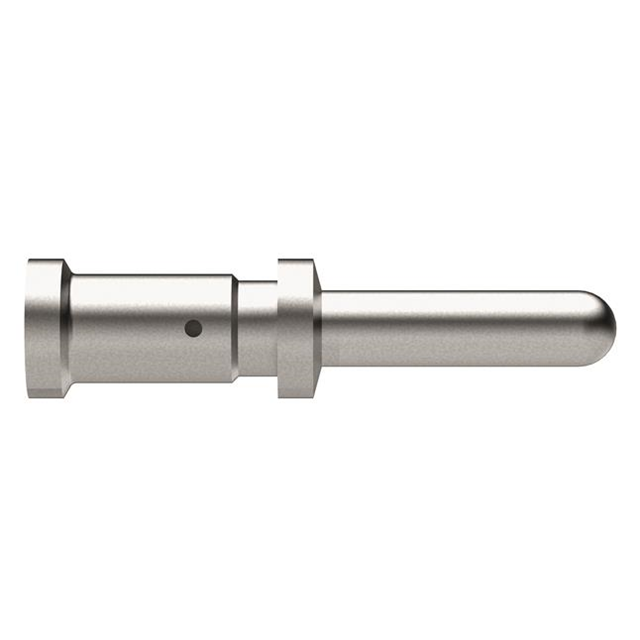

HAN HSB MALE CONTACT AWG 12 (4MM

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN HSB MALE CONTACT AWG 12 (4MM

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Type	Contact Termination	Pin or Socket	Wire Gauge	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Current Rating (Amps)	Color	Voltage Rating	Termination Style	Size	Contact Material	Gender	Material Flammability Rating	Number of Positions
HARTING Technology Group 09310006103	Silver	Machined	Crimp	Pin	8 AWG
HARTING Technology Group 09310062701	Silver					125 °C	-40 °C	Polycarbonate (PC)	35 A	Gray	600 V	Screw	16 B	Copper Alloy	Female	UL94 V-0	6+Ground
HARTING Technology Group 09310006201	Silver	Machined	Crimp	Socket	12 AWG
HARTING Technology Group 09310006102	Silver	Machined	Crimp	Pin	10 AWG
HARTING Technology Group 09310006205	Silver	Machined	Crimp	Socket	13.5 AWG
HARTING Technology Group 09310062651												Screw			Male		6+Ground
HARTING Technology Group 09310006101	Silver	Machined	Crimp	Pin	12 AWG
HARTING Technology Group 09310062711	Silver					125 °C	-40 °C	Polycarbonate (PC)	35 A	Gray	600 V	Screw	32 B	Copper Alloy	Female	UL94 V-0	6+Ground

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Contact Crimp Pin 12 AWG Silver
