HEAVY DUTY CONNECTOR, 6+PE SIGNAL, UL508, HAN HSB SERIES, INSERT, 7 CONTACTS, 16B, RECEPTACLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

09310062701

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, 6+PE SIGNAL, UL508, HAN HSB SERIES, INSERT, 7 CONTACTS, 16B, RECEPTACLE

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09310062701

Color	Gray
Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	35 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	6+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Termination Style	Screw
Voltage Rating	600 V

09310006 Series

Part	Contact Finish	Type	Contact Termination	Pin or Socket	Wire Gauge	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Current Rating (Amps)	Color	Voltage Rating	Termination Style	Size	Contact Material	Gender	Material Flammability Rating	Number of Positions
HARTING Technology Group 09310006103	Silver	Machined	Crimp	Pin	8 AWG
HARTING Technology Group 09310062701	Silver					125 °C	-40 °C	Polycarbonate (PC)	35 A	Gray	600 V	Screw	16 B	Copper Alloy	Female	UL94 V-0	6+Ground
HARTING Technology Group 09310006201	Silver	Machined	Crimp	Socket	12 AWG
HARTING Technology Group 09310006102	Silver	Machined	Crimp	Pin	10 AWG
HARTING Technology Group 09310006205	Silver	Machined	Crimp	Socket	13.5 AWG
HARTING Technology Group 09310062651												Screw			Male		6+Ground
HARTING Technology Group 09310006101	Silver	Machined	Crimp	Pin	12 AWG
HARTING Technology Group 09310062711	Silver					125 °C	-40 °C	Polycarbonate (PC)	35 A	Gray	600 V	Screw	32 B	Copper Alloy	Female	UL94 V-0	6+Ground

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 62.28
		10	$ 46.58
		25	$ 42.05
		50	$ 39.10
		100	$ 36.52
		250	$ 33.58
Newark	Each	1	$ 46.50
		5	$ 44.01
		10	$ 41.51
		25	$ 39.77
		50	$ 38.05
		100	$ 37.27

Description

General part information

09310006 Series

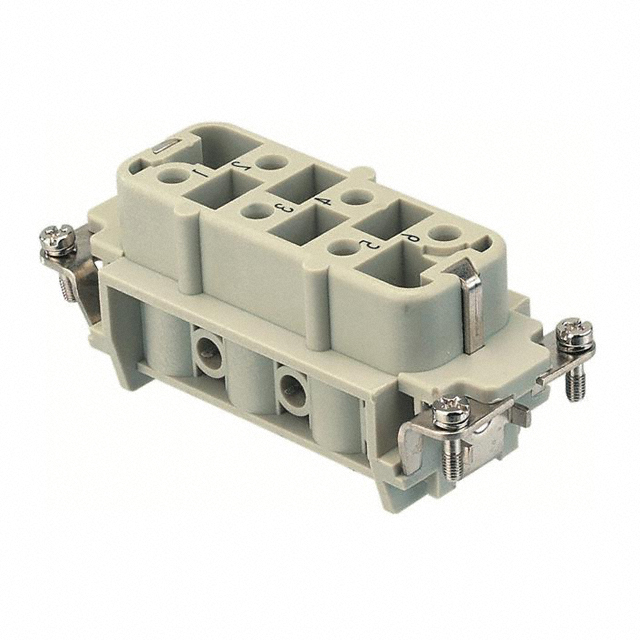

The 09310062701 is a 6-position Han 6 HSB Female Insert for 16B series connectors. 1.5 to 6mm² wire cross section area with screw terminals. Polycarbonate insert material with copper alloy contacts and silver plated surface contacts.
