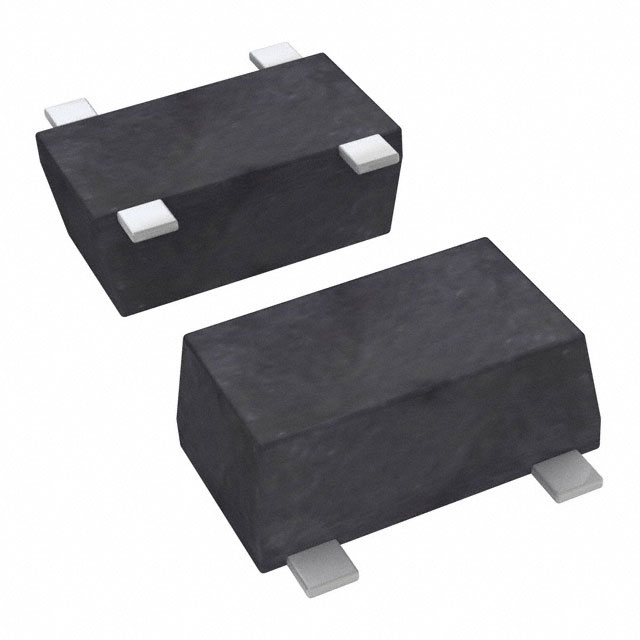

CA3509M4-C2B
ActiveCEL
RF MOSFET PHEMT FET 4V 4SUPMIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CA3509M4-C2B
ActiveCEL
RF MOSFET PHEMT FET 4V 4SUPMIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CA3509M4-C2B |
|---|---|
| Current - Test | 15 mA |
| Current Rating (Amps) | 20.6 mA |
| Frequency | 1.575 GHz |
| Gain | 17 dBi |
| Mounting Type | Surface Mount |
| Noise Figure | 0.4 dB |
| Package / Case | SOT-343F |
| Supplier Device Package | 4-Super Mini Mold |
| Technology | pHEMT FET |
| Voltage - Rated | 4 V |
| Voltage - Test | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.70 | |
| 10 | $ 1.50 | |||
| 25 | $ 1.36 | |||
| 100 | $ 1.19 | |||
| 250 | $ 1.04 | |||
| 500 | $ 0.92 | |||
| 1000 | $ 0.73 | |||
| Digi-Reel® | 1 | $ 1.70 | ||
| 10 | $ 1.50 | |||
| 25 | $ 1.36 | |||
| 100 | $ 1.19 | |||
| 250 | $ 1.04 | |||
| 500 | $ 0.92 | |||
| 1000 | $ 0.73 | |||
| Tape & Reel (TR) | 5000 | $ 0.60 | ||
Description
General part information
CA3509 Series
RF Mosfet 3 V 15 mA 1.575GHz 17dB 4-Super Mini Mold
