CA3509M4-EV23

Obsolete

CEL

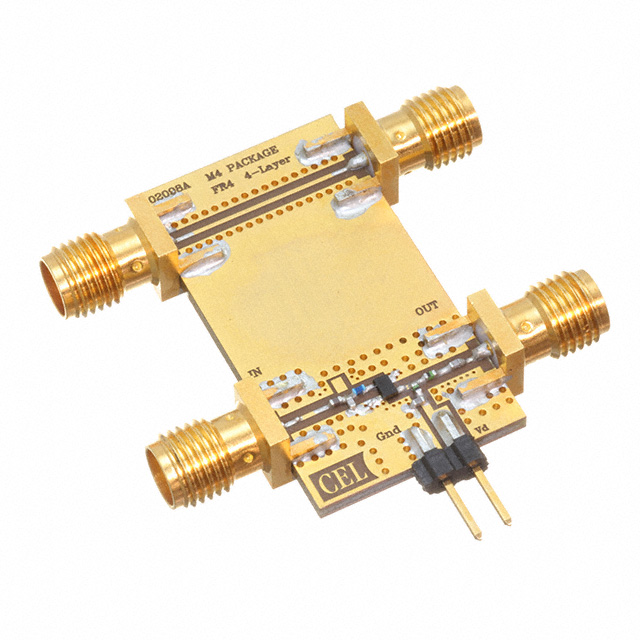

EVAL BOARD - TUNED FOR 2.33GHZ

Search across all available documentation for this part.

Obsolete

CEL

EVAL BOARD - TUNED FOR 2.33GHZ

Technical Specifications

Parameters and characteristics for this part

Specification	CA3509M4-EV23

For Use With/Related Products	CA3509M4
Frequency	2.33 GHz
Supplied Contents	Board(s)
Type	Amplifier

Part	For Use With/Related Products	Type	Frequency	Supplied Contents	Voltage - Rated	Gain	Mounting Type	Technology	Noise Figure	Current Rating (Amps)	Package / Case	Voltage - Test	Supplier Device Package	Current - Test
CEL CA3509M4-EV23	CA3509M4	Amplifier	2.33 GHz	Board(s)
CEL CA3509M4-C2B			1.575 GHz		4 V	17 dBi	Surface Mount	pHEMT FET	0.4 dB	20.6 mA	SOT-343F	3 V	4-Super Mini Mold	15 mA
CEL CA3509M4			1.575 GHz		4 V	17 dBi	Surface Mount	pHEMT FET	0.4 dB	20.6 mA	SOT-343F	3 V	4-Super Mini Mold	15 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

CA3509M4 - Amplifier 2.33GHz Evaluation Board
