HSDNARPPCB7A

Active

Amphenol ICC (Commercial Products)

HSD 4+2 R/A T/H CODE A

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

HSD 4+2 R/A T/H CODE A

Technical Specifications

Parameters and characteristics for this part

Part	Contact Termination	Impedance	Connector Style	Mounting Type	Features	Mating Cycles	Body Finish	Body Material	Fastening Type	Center Contact Material	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Connector Type	Center Contact Plating	Shield Termination	Dielectric Material
Amphenol ICC (Commercial Products) HSDNARPPCB13A	Solder	100 Ohms	Fakra HSD® Quadraxial	Through Hole Right Angle	Code A	25	Tin	Zinc Alloy	Latch Lock	Copper Alloy	Black	-40 °C	105 ░C	1	Male Pin Plug	Gold	Solder	Thermoplastic
Amphenol ICC (Commercial Products) HSDNARPPCB19B	Solder	100 Ohms	Fakra HSD® Quadraxial	Through Hole Right Angle	Code A	25	Tin	Zinc Alloy	Latch Lock	Copper Alloy	Black	-40 °C	105 ░C	1	Male Pin Plug	Gold	Solder	Thermoplastic
Amphenol ICC (Commercial Products) HSDNARPPCB12B	Solder	100 Ohms	Fakra HSD® Quadraxial	Through Hole Right Angle	Code A	25	Nickel	Zinc Alloy	Latch Lock	Copper Alloy	Black	-40 °C	105 ░C	1	Male Pin Plug	Gold	Solder	Thermoplastic
Amphenol ICC (Commercial Products) HSDNARPPCB7A	Solder		Fakra HSD® Quadraxial	Through Hole Right Angle	Code A		Tin	Zinc Alloy	Latch Lock	Copper Alloy	Black			1	Male Pin Plug	Gold	Solder	Thermoplastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

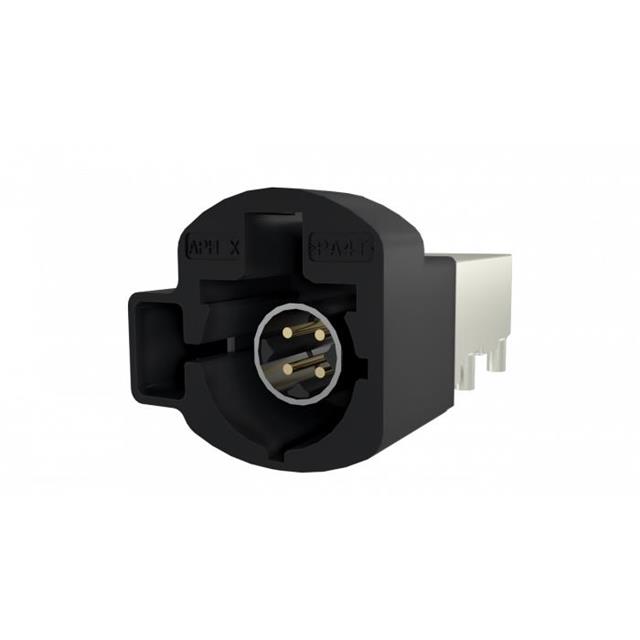

HSD®, Fakra, Quadraxial Connector Plug, Male Pin Through Hole, Right Angle Solder
