HSDNARPPCB13A
ActiveAmphenol ICC (Commercial Products)

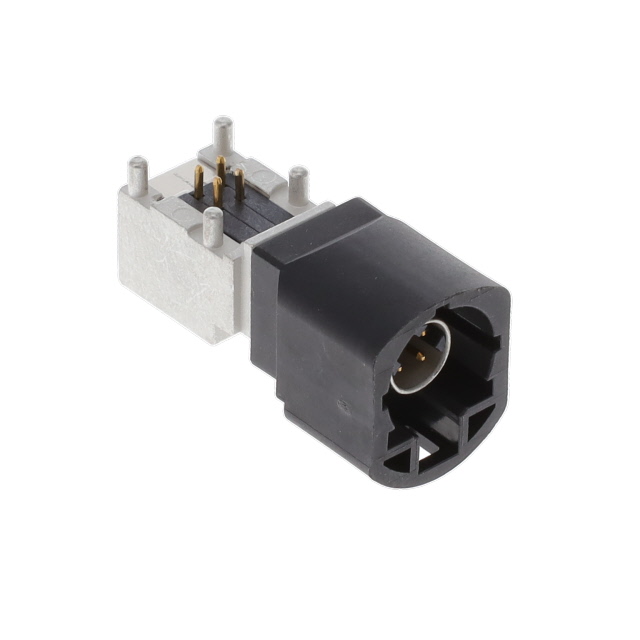

CONN HSD+0 R/A PLUG A CODE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HSDNARPPCB13A
ActiveAmphenol ICC (Commercial Products)
CONN HSD+0 R/A PLUG A CODE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HSDNARPPCB13A |
|---|---|
| Body Finish | Tin |
| Body Material | Zinc Alloy |
| Center Contact Material | Copper Alloy |
| Center Contact Plating | Gold |
| Connector Style | Quadraxial, Fakra, HSD® |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Thermoplastic |
| Fastening Type | Latch Lock |
| Features | Code A |
| Housing Color | Black |
| Impedance | 100 Ohms |
| Mating Cycles | 25 |
| Mounting Type | Through Hole, Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.55 | |
| 10 | $ 6.55 | |||
| 25 | $ 5.92 | |||
| 50 | $ 5.49 | |||
| 100 | $ 5.09 | |||
| Digi-Reel® | 1 | $ 7.20 | ||
| 10 | $ 6.51 | |||
| 25 | $ 6.15 | |||
| 50 | $ 6.00 | |||
| 100 | $ 5.70 | |||
Description
General part information
HSDNARPP Series
HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100 Ohms Through Hole, Right Angle Solder
