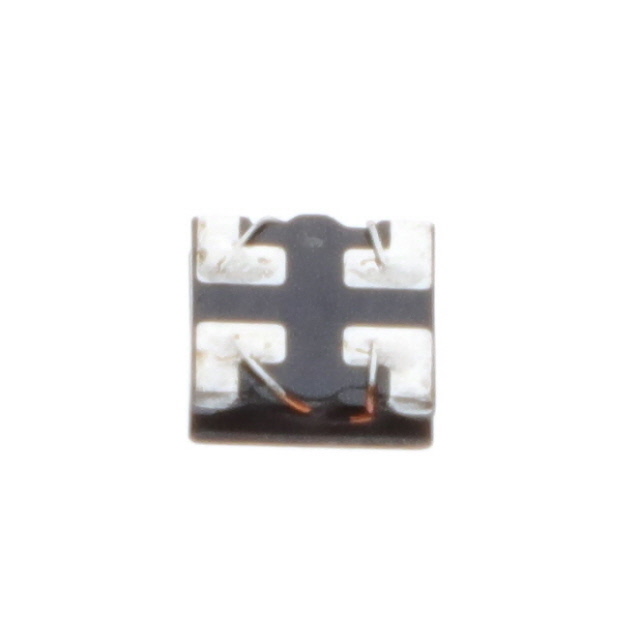

DLW44SM302SK2L

Active

Murata Power Solutions Inc.

COMMON MODE FILTER, 3 KOHM, 1.1A ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

COMMON MODE FILTER, 3 KOHM, 1.1A ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Impedance @ Frequency	Height (Max) [Max]	Height (Max) [Max]	Filter Type	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Number of Lines	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Package / Case	Current Rating (Max) [Max]	DC Resistance (DCR) (Max) [Max]	Mounting Type
Murata Power Solutions Inc. DLW44SM101SK2L	100 Ohms	1.5 mm	0.059 in	Power Line	60 VDC	-40 °C	105 ░C	2	0.157 in	4 mm	4 mm	0.157 "	4 Lead	Horizontal	3.1 A	22.4 mOhm	Surface Mount
Murata Power Solutions Inc. DLW44SM242SK2L	2.4 kOhms	1.5 mm	0.059 in	Power Line	60 VDC	-40 °C	105 ░C	2	0.157 in	4 mm	4 mm	0.157 "	4 Lead	Horizontal	1.4 A	105 mOhm	Surface Mount
Murata Power Solutions Inc. DLW44SM302SK2L	2.2 kOhms	1.5 mm	0.059 in	Power Line	60 VDC	-40 °C	105 ░C	2	0.157 in	4 mm	4 mm	0.157 "	4 Lead	Horizontal	1.1 A	168 mOhm	Surface Mount
Murata Power Solutions Inc. DLW44SM172SK2L	1.7 kOhms	1.5 mm	0.059 in	Power Line	60 VDC	-40 °C	105 ░C	2	0.157 in	4 mm	4 mm	0.157 "	4 Lead	Horizontal	1.5 A	84 mOhm	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Line Common Mode Choke Surface Mount 2.2 kOhms @ 100 MHz 1.1A DCR 168mOhm
