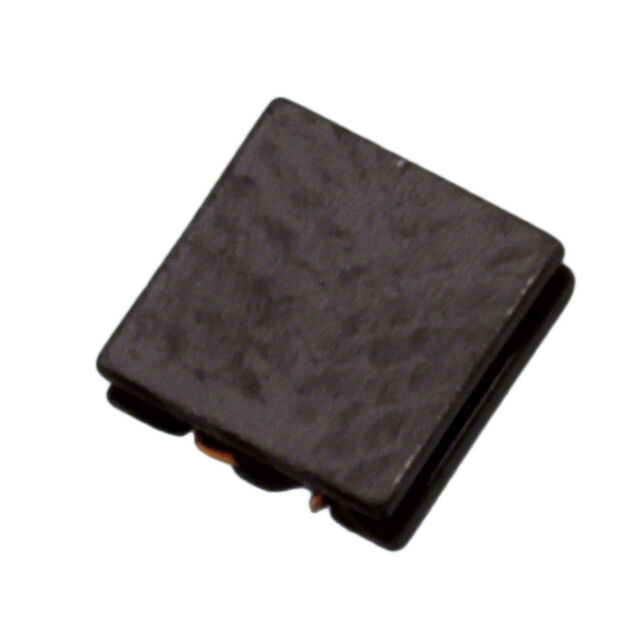

DLW44SM172SK2L
ActiveMurata Power Solutions Inc.
CMC 1.5A 2LN 1.7KOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DLW44SM172SK2L
ActiveMurata Power Solutions Inc.
CMC 1.5A 2LN 1.7KOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DLW44SM172SK2L |
|---|---|
| Current Rating (Max) [Max] | 1.5 A |
| DC Resistance (DCR) (Max) [Max] | 84 mOhm |
| Filter Type | Power Line |
| Height (Max) [Max] | 1.5 mm |
| Height (Max) [Max] | 0.059 in |
| Impedance @ Frequency | 1.7 kOhms |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4 Lead |
| Package / Case | Horizontal |
| Size / Dimension [x] | 4 mm |
| Size / Dimension [x] | 0.157 " |
| Size / Dimension [y] | 0.157 in |
| Size / Dimension [y] | 4 mm |
| Voltage Rating - DC | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.26 | |
| 10 | $ 1.92 | |||
| 25 | $ 1.77 | |||
| 50 | $ 1.58 | |||
| 100 | $ 1.32 | |||
| 250 | $ 1.28 | |||
| 500 | $ 1.21 | |||
| Digi-Reel® | 1 | $ 2.26 | ||
| 10 | $ 1.92 | |||
| 25 | $ 1.77 | |||
| 50 | $ 1.58 | |||
| 100 | $ 1.32 | |||
| 250 | $ 1.28 | |||
| 500 | $ 1.21 | |||
| Tape & Reel (TR) | 1000 | $ 1.13 | ||
| 3000 | $ 1.09 | |||
| 5000 | $ 1.06 | |||
Description
General part information
DLW44SM Series
2 Line Common Mode Choke Surface Mount 1.7 kOhms @ 100 MHz 1.5A DCR 84mOhm
