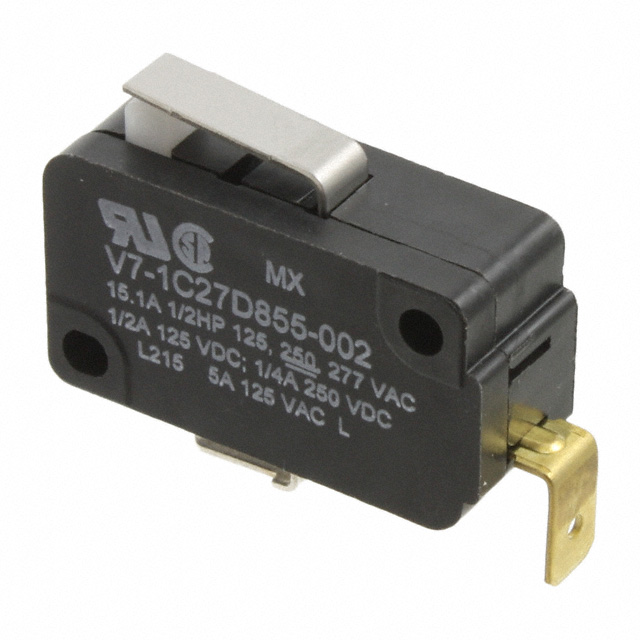

V7-1C27D855-002

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NO 15A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsV7 Series Basic Switches Catalog Basic, Toggle, Rocker Switches Range Guide +1

V7-1C27D855-002

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NO 15A 125V

Deep-Dive with AI

DocumentsV7 Series Basic Switches Catalog Basic, Toggle, Rocker Switches Range Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V7-1C27D855-002

Actuator Type	Lever, Straight
Circuit	SPST-NO
Current Rating (Amps)	500 mA, 15 A
Differential Travel	0.015 in
Differential Travel	0.38 mm
Electrical Life	100000 Cycles
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Position	0.6 in
Operating Position	15.2 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.035 "
Overtravel	0.9 mm
Pretravel	1.5 mm
Pretravel	0.06 in
Release Force	15 gf
Switch Function	Off-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	125 VDC

V7-1C2 Series

Part	Circuit	Termination Style	Voltage Rating - DC	Mounting Type	Differential Travel	Differential Travel	Mechanical Life	Overtravel	Overtravel	Release Force	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Electrical Life	Operating Position	Operating Position	Pretravel	Pretravel	Actuator Type	Voltage Rating - AC	Switch Function
Honeywell Sensing and Productivity Solutions V7-1C29D8	SPST-NO	Quick Connect - 0.187" (4.7mm)	125 VDC	Chassis Mount	0.25 mm	0.01 in	10000000 Cycles	1.27 mm	0.05 in	25 gf	15 A 500 mA	85 °C	-40 °C	150 gf	100000 Cycles	0.579 in	14.7 mm	0.047 in	1.2 mm	Round (Pin Plunger)	125 V	Off-Mom
Honeywell Sensing and Productivity Solutions V7-1C29E7	SPST-NO	Quick Connect - 0.187" (4.7mm)	125 VDC	Chassis Mount	0.25 mm	0.01 in	10000000 Cycles	1.27 mm	0.05 in	25 gf	15 A 500 mA	85 °C	-40 °C	150 gf	100000 Cycles	0.579 in	14.7 mm	0.047 in	1.2 mm	Round (Pin Plunger)	125 V	Off-Mom
Honeywell Sensing and Productivity Solutions V7-1C27D855-002	SPST-NO	Quick Connect - 0.187" (4.7mm)	125 VDC	Chassis Mount	0.38 mm	0.015 in	10000000 Cycles	0.9 mm	0.035 "	15 gf	15 A 500 mA	85 °C	-40 °C		100000 Cycles	0.6 in	15.2 mm	0.06 in	1.5 mm	Lever Straight	125 V	Off-Mom
Honeywell Sensing and Productivity Solutions V7-1C27E9	SPST-NO	Quick Connect - 0.250" (6.3mm)	125 VDC	Chassis Mount	0.25 mm	0.01 in	10000000 Cycles	1.27 mm	0.05 in	25 gf	15 A 500 mA	85 °C	-40 °C	150 gf	100000 Cycles	0.579 in	14.7 mm	0.047 in	1.2 mm	Round (Pin Plunger)	125 V	Off-Mom
Honeywell Sensing and Productivity Solutions V7-1C27D8-000-1	SPST-NO	Quick Connect - 0.187" (4.7mm)	125 VDC	Chassis Mount	0.25 mm	0.01 in	10000000 Cycles	0.76 mm	0.03 in	25 gf	15 A 500 mA	85 °C	-40 °C	150 gf	100000 Cycles	0.63 in	16 mm	0.047 in	1.2 mm	Round (Pin Plunger)	125 V	Off-Mom

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 5.80

Description

General part information

V7-1C2 Series

Switch SPST-NO Chassis Mount

Documents

Technical documentation and resources

V7 Series Basic Switches Catalog

Datasheet

Basic, Toggle, Rocker Switches Range Guide

Datasheet
