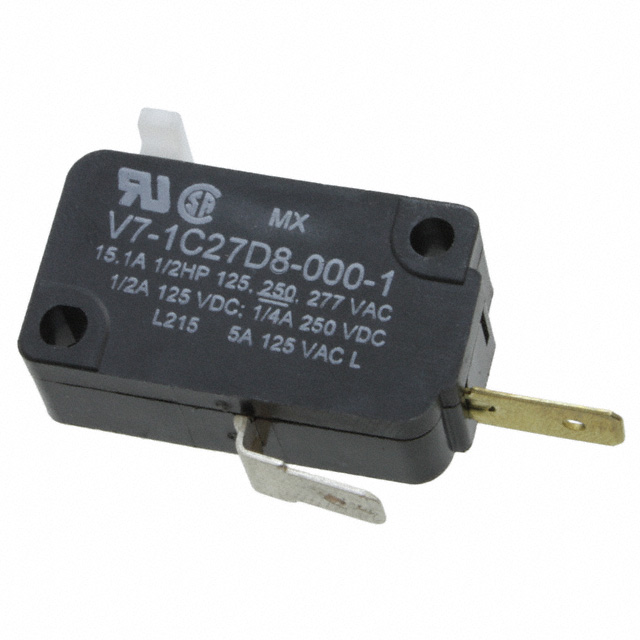

V7-1C27D8-000-1

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NO 15A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBasic, Toggle, Rocker Switches Range Guide Datasheet

V7-1C27D8-000-1

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NO 15A 125V

Deep-Dive with AI

DocumentsBasic, Toggle, Rocker Switches Range Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V7-1C27D8-000-1

Actuator Type	Round (Pin Plunger)
Circuit	SPST-NO
Current Rating (Amps)	500 mA, 15 A
Differential Travel	0.25 mm
Differential Travel	0.01 in
Electrical Life	100000 Cycles
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	150 gf
Operating Position	0.63 in
Operating Position	16 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.76 mm
Overtravel	0.03 in
Pretravel	0.047 in
Pretravel	1.2 mm
Release Force	25 gf
Switch Function	Off-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	125 VDC

V7-1C2 Series

Part	Circuit	Termination Style	Voltage Rating - DC	Mounting Type	Differential Travel	Differential Travel	Mechanical Life	Overtravel	Overtravel	Release Force	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Electrical Life	Operating Position	Operating Position	Pretravel	Pretravel	Actuator Type	Voltage Rating - AC	Switch Function
Honeywell Sensing and Productivity Solutions V7-1C29D8	SPST-NO	Quick Connect - 0.187" (4.7mm)	125 VDC	Chassis Mount	0.25 mm	0.01 in	10000000 Cycles	1.27 mm	0.05 in	25 gf	15 A 500 mA	85 °C	-40 °C	150 gf	100000 Cycles	0.579 in	14.7 mm	0.047 in	1.2 mm	Round (Pin Plunger)	125 V	Off-Mom
Honeywell Sensing and Productivity Solutions V7-1C29E7	SPST-NO	Quick Connect - 0.187" (4.7mm)	125 VDC	Chassis Mount	0.25 mm	0.01 in	10000000 Cycles	1.27 mm	0.05 in	25 gf	15 A 500 mA	85 °C	-40 °C	150 gf	100000 Cycles	0.579 in	14.7 mm	0.047 in	1.2 mm	Round (Pin Plunger)	125 V	Off-Mom
Honeywell Sensing and Productivity Solutions V7-1C27D855-002	SPST-NO	Quick Connect - 0.187" (4.7mm)	125 VDC	Chassis Mount	0.38 mm	0.015 in	10000000 Cycles	0.9 mm	0.035 "	15 gf	15 A 500 mA	85 °C	-40 °C		100000 Cycles	0.6 in	15.2 mm	0.06 in	1.5 mm	Lever Straight	125 V	Off-Mom
Honeywell Sensing and Productivity Solutions V7-1C27E9	SPST-NO	Quick Connect - 0.250" (6.3mm)	125 VDC	Chassis Mount	0.25 mm	0.01 in	10000000 Cycles	1.27 mm	0.05 in	25 gf	15 A 500 mA	85 °C	-40 °C	150 gf	100000 Cycles	0.579 in	14.7 mm	0.047 in	1.2 mm	Round (Pin Plunger)	125 V	Off-Mom
Honeywell Sensing and Productivity Solutions V7-1C27D8-000-1	SPST-NO	Quick Connect - 0.187" (4.7mm)	125 VDC	Chassis Mount	0.25 mm	0.01 in	10000000 Cycles	0.76 mm	0.03 in	25 gf	15 A 500 mA	85 °C	-40 °C	150 gf	100000 Cycles	0.63 in	16 mm	0.047 in	1.2 mm	Round (Pin Plunger)	125 V	Off-Mom

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.80
		10	$ 4.80
		25	$ 4.46

Description

General part information

V7-1C2 Series

Switch SPST-NO Chassis Mount

Documents

Technical documentation and resources

Basic, Toggle, Rocker Switches Range Guide

Datasheet
