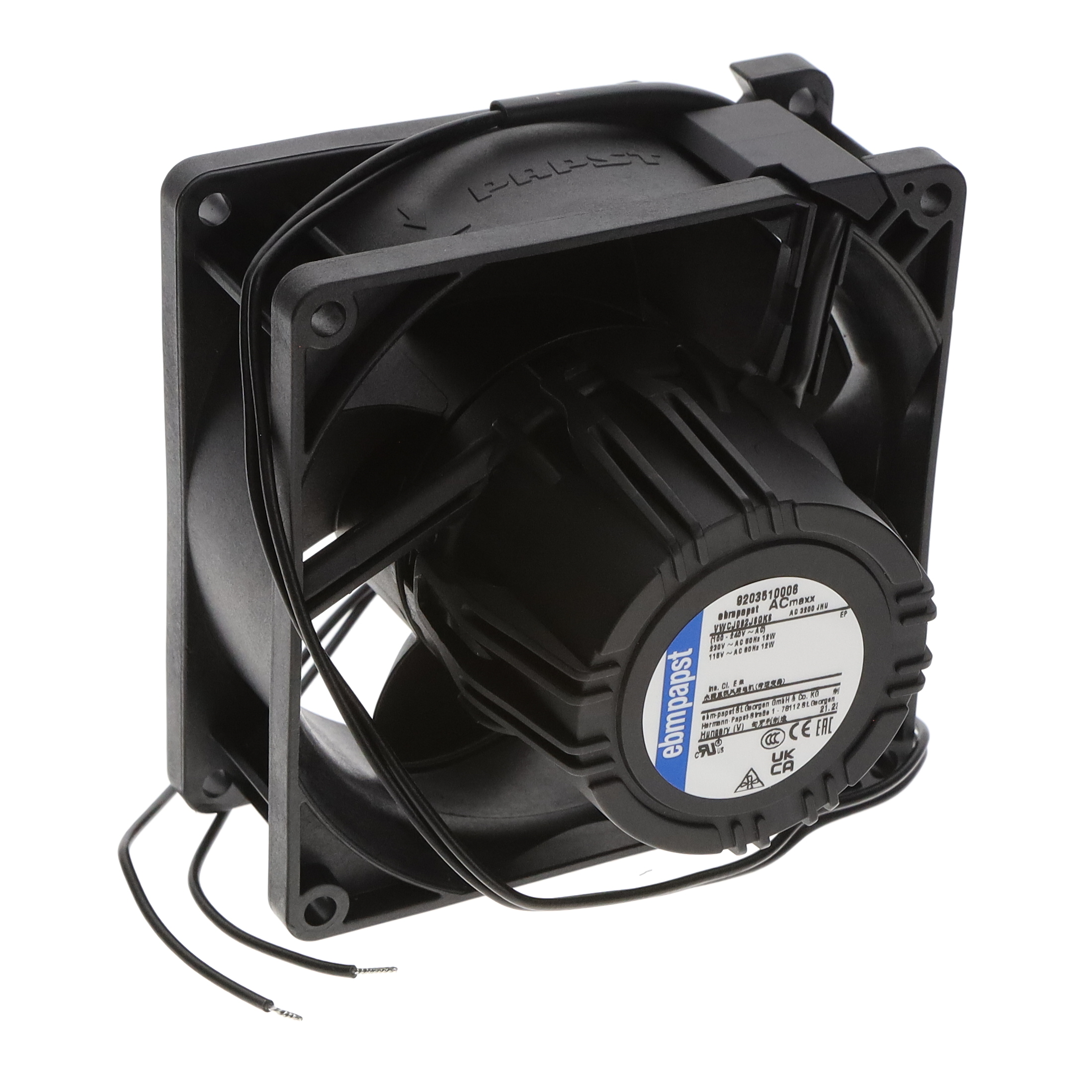

AC3200JHU

Active

ebm-papst Inc.

FAN AXIAL115/230VAC 92X72MM IP65

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL115/230VAC 92X72MM IP65

Technical Specifications

Parameters and characteristics for this part

Specification	AC3200JHU

Air Flow	84.8 CFM
Air Flow	2.37 m³/min
Approval Agency	UL, CSA, VDE, CCC, CE
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Auto Restart, Dual Voltage
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	55 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	12 W
Static Pressure	260 Pa
Static Pressure	1.044 in H2O
Termination	2 Wire Leads
Voltage - Rated [Max]	230 VAC
Voltage - Rated [Min]	115 VAC
Weight	0.717 lb
Weight	325.22 g
Width [y]	72 mm

Part	Air Flow	Air Flow	Fan Type	Bearing Type	Weight	Weight	Termination	Width [y]	Approval Agency	Lifetime @ Temp.	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Features	Voltage Range [Max]	Voltage Range [Min]	Noise	Material - Blade	RPM	Static Pressure	Static Pressure	Material - Frame	Ingress Protection	Voltage - Rated [Max]	Voltage - Rated [Min]
ebm-papst Inc. AC3200JH	2.41 m³/min	86 CFM	Tubeaxial	Ball	0.716 lb	324.77 g	2 Wire Leads	38 mm	CCC CE CSA UL VDE	70000 Hrs	11 W	-20 °C	70 °C	-20 C	70 °C	115 VAC	Electronic Commutation (EC) Locked Rotor Protection	265 VAC	85 VAC	55 dB	Fiberglass Reinforced Nylon Polyamide (PA)	6800 RPM
ebm-papst Inc. AC3200JHU	2.37 m³/min	84.8 CFM	Tubeaxial	Ball	0.717 lb	325.22 g	2 Wire Leads	72 mm	CCC CE CSA UL VDE	70000 Hrs	12 W	-20 °C	70 °C	-20 C	70 °C		Auto Restart Dual Voltage			55 dB	Plastic		260 Pa	1.044 in H2O	Plastic	IP65 - Dust Tight Water Resistant	230 VAC	115 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 115/230VAC Square - 92mm L x 92mm H Ball 84.8 CFM (2.37m³/min) 2 Wire Leads
