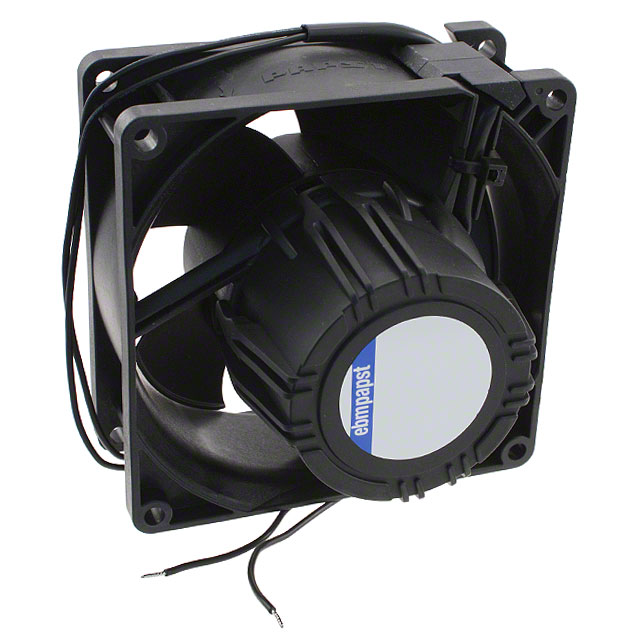

AC3200JH
Activeebm-papst Inc.
FAN AXIAL 92X38MM 85/265VAC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
AC3200JH
Activeebm-papst Inc.
FAN AXIAL 92X38MM 85/265VAC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AC3200JH |
|---|---|
| Air Flow | 2.41 m³/min |
| Air Flow | 86 CFM |
| Approval Agency | UL, CSA, VDE, CCC, CE |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, Electronic Commutation (EC) |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Noise | 55 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 11 W |
| RPM | 6800 RPM |
| Termination | 2 Wire Leads |
| Voltage - Rated | 115 VAC |
| Voltage Range [Max] | 265 VAC |
| Voltage Range [Min] | 85 VAC |
| Weight | 0.716 lb |
| Weight | 324.77 g |
| Width [y] | 38 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 82.63 | |
| 10 | $ 74.76 | |||
| 25 | $ 69.85 | |||
| 50 | $ 68.86 | |||
| 100 | $ 63.45 | |||
Description
General part information
AC3200 Series
Fan Tubeaxial 115VAC Square - 92mm L x 92mm H Ball 86.0 CFM (2.41m³/min) 2 Wire Leads
