MDBRE15PEAN0
ActiveAmphenol ICC (Commercial Products)

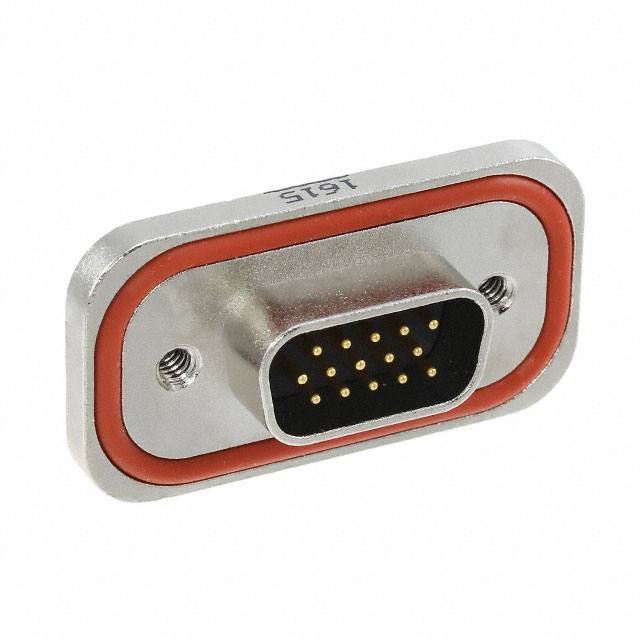

CONN D-SUB HD PLUG 15POS PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MDBRE15PEAN0
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB HD PLUG 15POS PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MDBRE15PEAN0 |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Thermoplastic, Glass Filled |
| Flange Feature | Housing/Shell (4-40) |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shell Material, Finish | Nickel Plated, Zinc |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Shell Size, Connector Layout [custom] | High Density |
| Termination | Solder |
| Voltage Rating | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 29.57 | |
| 10 | $ 22.82 | |||
| 25 | $ 20.68 | |||
| 40 | $ 19.68 | |||
| 80 | $ 18.32 | |||
| 230 | $ 16.50 | |||
| 440 | $ 15.51 | |||
Description
General part information
MDBRE15 Series
15 Position D-Sub, High Density Plug, Male Pins Connector
