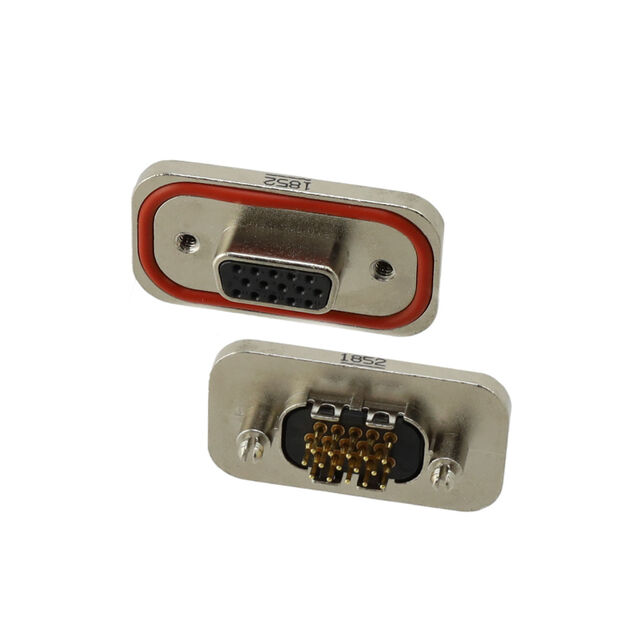

MDBRE15SMAN0
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB HD RCPT 15POS PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MDBRE15SMAN0
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB HD RCPT 15POS PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MDBRE15SMAN0 |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Thermoplastic, Glass Filled |
| Flange Feature | Housing/Shell (4-40) |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shell Material, Finish | Nickel Plated, Zinc |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Shell Size, Connector Layout [custom] | High Density |
| Voltage Rating | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 48.48 | |
| 10 | $ 37.53 | |||
| 25 | $ 34.06 | |||
| 40 | $ 32.44 | |||
| 80 | $ 30.25 | |||
| 230 | $ 27.30 | |||
Description
General part information
MDBRE15 Series
15 Position D-Sub, High Density Receptacle, Female Sockets Connector
