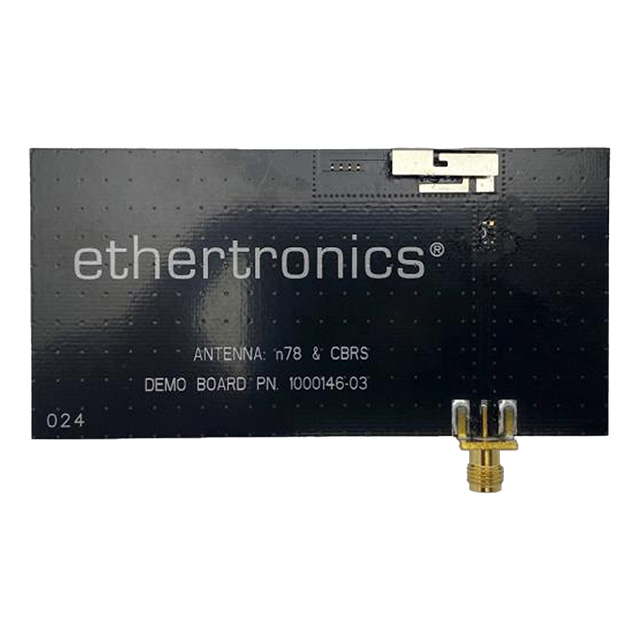

1000146-03

Active

Kyocera AVX

EVAL BOARD FOR 1000146

Search across all available documentation for this part.

Active

Kyocera AVX

EVAL BOARD FOR 1000146

Technical Specifications

Parameters and characteristics for this part

Specification	1000146-03

For Use With/Related Products	1000146
Frequency [Max]	3.8 GHz
Frequency [Min]	3.3 GHz
Supplied Contents	Board(s)
Type	Antenna

Part	Supplied Contents	Frequency [Max]	Frequency [Min]	For Use With/Related Products	Type	Antenna Type	Frequency Range [Max]	Frequency Range [Min]	Frequency (Center/Band)	Height (Max) [Max]	Height (Max) [Max]	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Gain	Applications	VSWR	RF Family/Standard	Mounting Type	Number of Bands	Termination
Kyocera AVX 1000146-03	Board(s)	3.8 GHz	3.3 GHz	1000146	Antenna
Kyocera AVX 1000146						Stamped Metal	2.49 GHz 5.35 GHz 5.9 GHz	2.39 GHz 4.9 GHz 5.7 GHz	2.4 GHz 4.9 GHz 5.2 GHz 5.8 GHz	0.169 in	4.3 mm	4 GHz	2 GHz	3 GHz	2.5 dBi 3.5 dBi	Bluetooth Wi-Fi WLAN Zigbee™	1.3 1.5 1.6 1.8	802.15.4 Bluetooth WiFi	Surface Mount	4	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 13.66

General part information

1000146 - Antenna 3.3GHz ~ 3.8GHz Evaluation Board
