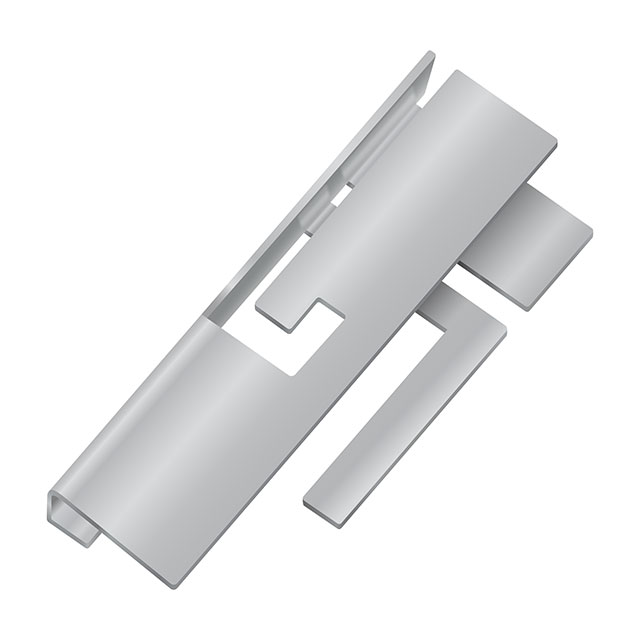

1000146
ActiveKyocera AVX
RF ANT 2.4GHZ/4.9GHZ STAMPED MET
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1000146
ActiveKyocera AVX
RF ANT 2.4GHZ/4.9GHZ STAMPED MET
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1000146 |
|---|---|
| Antenna Type | Stamped Metal |
| Applications | WLAN, Bluetooth, Wi-Fi, Zigbee™ |
| Frequency (Center/Band) | 2.4 GHz, 5.8 GHz, 4.9 GHz, 5.2 GHz |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 3 GHz |
| Frequency Group [Min] | 2 GHz |
| Frequency Range [Max] | 5.9 GHz, 2.49 GHz, 5.35 GHz |
| Frequency Range [Min] | 2.39 GHz, 5.7 GHz, 4.9 GHz |
| Gain | 2.5 dBi, 3.5 dBi |
| Height (Max) [Max] | 0.169 in |
| Height (Max) [Max] | 4.3 mm |
| Mounting Type | Surface Mount |
| Number of Bands | 4 |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
| Termination | Solder |
| VSWR | 1.5, 1.3, 1.8, 1.6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.36 | |
| 10 | $ 1.22 | |||
| 25 | $ 1.15 | |||
| 100 | $ 0.95 | |||
| 250 | $ 0.89 | |||
| 500 | $ 0.78 | |||
| Digi-Reel® | 1 | $ 1.36 | ||
| 10 | $ 1.22 | |||
| 25 | $ 1.15 | |||
| 100 | $ 0.95 | |||
| 250 | $ 0.89 | |||
| 500 | $ 0.78 | |||
| Tape & Reel (TR) | 1200 | $ 0.54 | ||
| 2400 | $ 0.51 | |||
| 3600 | $ 0.50 | |||
Description
General part information
1000146 Series
RF ANTENNA Bluetooth, Wi-Fi, WLAN, Zigbee™ Stamped Metal Solder Surface Mount
Documents
Technical documentation and resources
