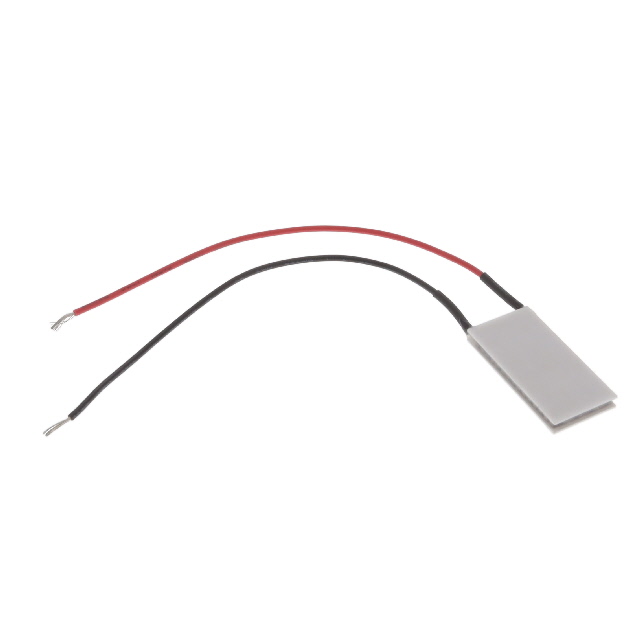

56430-510

Active

Laird Thermal Systems, Inc.

CP10-63-05-L1-RT-W4.5

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

CP10-63-05-L1-RT-W4.5

Technical Specifications

Parameters and characteristics for this part

Specification	56430-510

Current - Max [Max]	3.9 A
Delta Tmax @ Th	67 °C
Features	Sealed - Silicone RTV, Lead Wires
Height [z]	3.2 mm
Number of Stages	1
Operating Temperature	80 °C
Qmax @ Th	16.6 W
Resistance	1.66 Ohms
Size / Dimension [x]	29.7 mm
Size / Dimension [y]	14.9 mm
Voltage - Max [Max]	7.6 V

Part	Height [z]	Voltage - Max [Max]	Current - Max [Max]	Resistance	Delta Tmax @ Th	Qmax @ Th	Features	Number of Stages	Operating Temperature	Size / Dimension [y]	Size / Dimension [x]
Laird Thermal Systems, Inc. 56430-510	3.2 mm	7.6 V	3.9 A	1.66 Ohms	67 °C	16.6 W	Lead Wires Sealed - Silicone RTV	1	80 °C	14.9 mm	29.7 mm
Laird Thermal Systems, Inc. 56430-501	3.2 mm	7.6 V	3.9 A	1.66 Ohms	67 °C	16.6 W	Lead Wires Non-Sealed	1	80 °C	15 mm	29.72 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 24.54

General part information

Peltier Module 16.6W @ 25°C 3.9 A 80°C
