56430-501
ActiveLaird Thermal Systems, Inc.

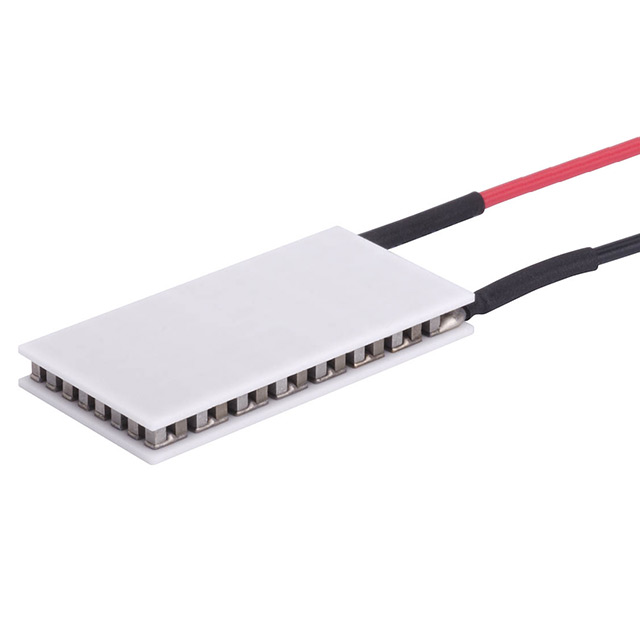

PELTIER MOD CP10,63,05,L1,W4.5
Deep-Dive with AI
Search across all available documentation for this part.
56430-501
ActiveLaird Thermal Systems, Inc.
PELTIER MOD CP10,63,05,L1,W4.5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 56430-501 |
|---|---|
| Current - Max [Max] | 3.9 A |
| Delta Tmax @ Th | 67 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 3.2 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 16.6 W |
| Resistance | 1.66 Ohms |
| Size / Dimension [x] | 29.72 mm |
| Size / Dimension [y] | 15 mm |
| Voltage - Max [Max] | 7.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.32 | |
| 5 | $ 22.86 | |||
| 10 | $ 22.26 | |||
| 25 | $ 21.48 | |||
| 50 | $ 20.92 | |||
| 100 | $ 20.37 | |||
Description
General part information
56430 Series
Peltier Module 16.6W @ 25°C 3.9 A 80°C
