UB25NBKW01N-B

Active

NKK Switches

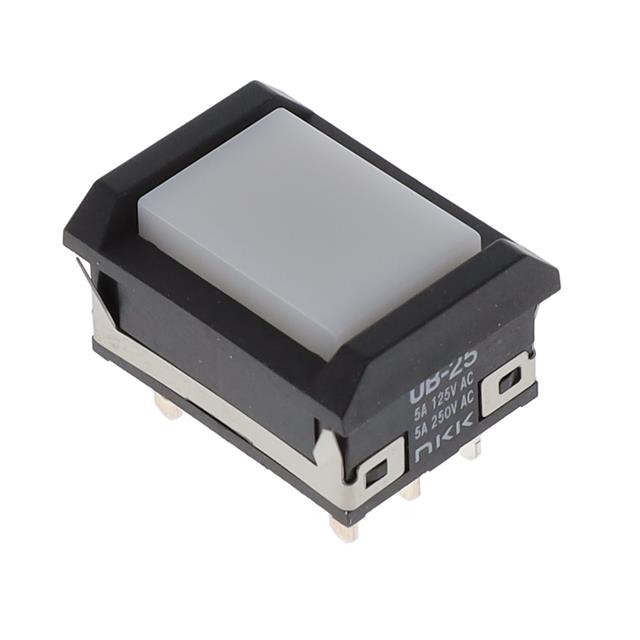

SWITCH PUSHBUTTON DPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UB25NBKW01N-B

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 5A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UB25NBKW01N-B

Actuator Marking	No Marking
Actuator Type	Rectangular, Button
Circuit	DPDT
Color - Actuator/Cap	White
Current Rating (Amps)	5 A
Electrical Life	10000 Cycles
Features	With Barrier
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	22.4 mm
Panel Cutout Dimensions [y]	16.2 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

UB25NBK Series

Part	Type	Electrical Life	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Circuit	Switch Function	Color - Actuator/Cap	Termination Style	Voltage Rating - AC	Features	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Actuator Marking	Voltage Rating - DC	Mechanical Life	Mounting Type	Illumination Type, Color	Illumination Voltage (Nominal)	Color - Actuator/Cap [custom]	Color - Actuator/Cap [custom]
NKK Switches UB25NBKW01N-B	Standard	10000 Cycles	22.4 mm	16.2 mm	DPDT	On-Mom	White	Solder Lug	125 V	With Barrier	Rectangular Button	-20 C	70 °C	5 A	No Marking	30 V	1000000 Cycles	Panel Mount Snap-In
NKK Switches UB25NBKW015C-JB	Illuminated Standard	10000 Cycles	22.4 mm	16.2 mm	DPDT	On-Mom	Clear	Solder Lug	125 V	With Barrier	Rectangular Button	-25 °C	50 °C	5 A	No Marking	30 V	1000000 Cycles	Panel Mount Snap-In	LED Red	1.85 VDC
NKK Switches UB25NBKG015F-AB	Illuminated Standard	200000 Cycles	22.4 mm	16.2 mm	DPDT	On-Mom		Solder Lug	28 V	With Barrier	Rectangular Button	-25 °C	50 °C	0.4 VA	No Marking	28 V	1000000 Cycles	Panel Mount Snap-In	Green LED	2.1 VDC	Black	White
NKK Switches UB25NBKG015D-DD	Illuminated Standard	200000 Cycles	22.4 mm	16.2 mm	DPDT	On-Mom	Amber	Solder Lug	28 V	With Barrier	Rectangular Button	-25 °C	50 °C	0.4 VA	No Marking	28 V	1000000 Cycles	Panel Mount Snap-In	Amber LED	2 VDC
NKK Switches UB25NBKW015F-AB	Illuminated Standard	10000 Cycles	22.4 mm	16.2 mm	DPDT	On-Mom		Solder Lug	125 V	With Barrier	Rectangular Button	-25 °C	50 °C	5 A	No Marking	30 V	1000000 Cycles	Panel Mount Snap-In	Green LED	2.1 VDC	Black	White
NKK Switches UB25NBKG01N	Standard	200000 Cycles	22.4 mm	16.2 mm	DPDT	On-Mom		Solder Lug	28 V	With Barrier	Plunger for Cap	-20 C	70 °C	0.4 VA	No Marking	28 V	1000000 Cycles	Panel Mount Snap-In
NKK Switches UB25NBKG015F-JF	Illuminated Standard	200000 Cycles	22.4 mm	16.2 mm	DPDT	On-Mom	Clear	Solder Lug	28 V	With Barrier	Rectangular Button	-25 °C	50 °C	0.4 VA	No Marking	28 V	1000000 Cycles	Panel Mount Snap-In	Green LED	2.1 VDC
NKK Switches UB25NBKW015F-JF	Illuminated Standard	10000 Cycles	22.4 mm	16.2 mm	DPDT	On-Mom	Clear	Solder Lug	125 V	With Barrier	Rectangular Button	-25 °C	50 °C	5 A	No Marking	30 V	1000000 Cycles	Panel Mount Snap-In	Green LED	2.1 VDC
NKK Switches UB25NBKW015D-JD	Illuminated Standard	10000 Cycles	22.4 mm	16.2 mm	DPDT	On-Mom	Clear	Solder Lug	125 V	With Barrier	Rectangular Button	-25 °C	50 °C	5 A	No Marking	30 V	1000000 Cycles	Panel Mount Snap-In	Amber LED	2 VDC
NKK Switches UB25NBKG015C-CC	Illuminated Standard	200000 Cycles	22.4 mm	16.2 mm	DPDT	On-Mom	Red	Solder Lug	28 V	With Barrier	Rectangular Button	-25 °C	50 °C	0.4 VA	No Marking	28 V	1000000 Cycles	Panel Mount Snap-In	LED Red	1.85 VDC
