UB25NBKG015C-CC

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

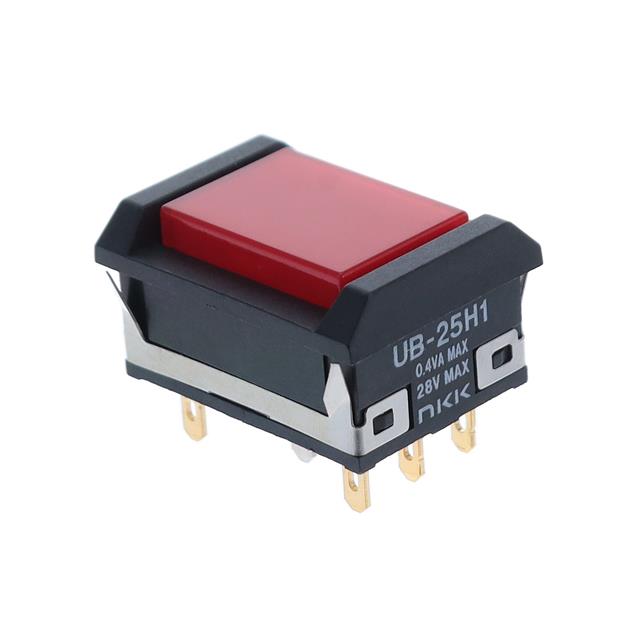

UB25NBKG015C-CC

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UB25NBKG015C-CC

Actuator Marking	No Marking
Actuator Type	Rectangular, Button
Circuit	DPDT
Color - Actuator/Cap	Red
Current Rating (Amps)	0.4 VA
Electrical Life	200000 Cycles
Features	With Barrier
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	1.85 VDC
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	22.4 mm
Panel Cutout Dimensions [y]	16.2 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

UB25NBK Series

Part	Type	Electrical Life	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Circuit	Switch Function	Color - Actuator/Cap	Termination Style	Voltage Rating - AC	Features	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Actuator Marking	Voltage Rating - DC	Mechanical Life	Mounting Type	Illumination Type, Color	Illumination Voltage (Nominal)	Color - Actuator/Cap [custom]	Color - Actuator/Cap [custom]
NKK Switches UB25NBKW01N-B	Standard	10000 Cycles	22.4 mm	16.2 mm	DPDT	On-Mom	White	Solder Lug	125 V	With Barrier	Rectangular Button	-20 C	70 °C	5 A	No Marking	30 V	1000000 Cycles	Panel Mount Snap-In
NKK Switches UB25NBKW015C-JB	Illuminated Standard	10000 Cycles	22.4 mm	16.2 mm	DPDT	On-Mom	Clear	Solder Lug	125 V	With Barrier	Rectangular Button	-25 °C	50 °C	5 A	No Marking	30 V	1000000 Cycles	Panel Mount Snap-In	LED Red	1.85 VDC
NKK Switches UB25NBKG015F-AB	Illuminated Standard	200000 Cycles	22.4 mm	16.2 mm	DPDT	On-Mom		Solder Lug	28 V	With Barrier	Rectangular Button	-25 °C	50 °C	0.4 VA	No Marking	28 V	1000000 Cycles	Panel Mount Snap-In	Green LED	2.1 VDC	Black	White
NKK Switches UB25NBKG015D-DD	Illuminated Standard	200000 Cycles	22.4 mm	16.2 mm	DPDT	On-Mom	Amber	Solder Lug	28 V	With Barrier	Rectangular Button	-25 °C	50 °C	0.4 VA	No Marking	28 V	1000000 Cycles	Panel Mount Snap-In	Amber LED	2 VDC
NKK Switches UB25NBKW015F-AB	Illuminated Standard	10000 Cycles	22.4 mm	16.2 mm	DPDT	On-Mom		Solder Lug	125 V	With Barrier	Rectangular Button	-25 °C	50 °C	5 A	No Marking	30 V	1000000 Cycles	Panel Mount Snap-In	Green LED	2.1 VDC	Black	White
NKK Switches UB25NBKG01N	Standard	200000 Cycles	22.4 mm	16.2 mm	DPDT	On-Mom		Solder Lug	28 V	With Barrier	Plunger for Cap	-20 C	70 °C	0.4 VA	No Marking	28 V	1000000 Cycles	Panel Mount Snap-In
NKK Switches UB25NBKG015F-JF	Illuminated Standard	200000 Cycles	22.4 mm	16.2 mm	DPDT	On-Mom	Clear	Solder Lug	28 V	With Barrier	Rectangular Button	-25 °C	50 °C	0.4 VA	No Marking	28 V	1000000 Cycles	Panel Mount Snap-In	Green LED	2.1 VDC
NKK Switches UB25NBKW015F-JF	Illuminated Standard	10000 Cycles	22.4 mm	16.2 mm	DPDT	On-Mom	Clear	Solder Lug	125 V	With Barrier	Rectangular Button	-25 °C	50 °C	5 A	No Marking	30 V	1000000 Cycles	Panel Mount Snap-In	Green LED	2.1 VDC
NKK Switches UB25NBKW015D-JD	Illuminated Standard	10000 Cycles	22.4 mm	16.2 mm	DPDT	On-Mom	Clear	Solder Lug	125 V	With Barrier	Rectangular Button	-25 °C	50 °C	5 A	No Marking	30 V	1000000 Cycles	Panel Mount Snap-In	Amber LED	2 VDC
NKK Switches UB25NBKG015C-CC	Illuminated Standard	200000 Cycles	22.4 mm	16.2 mm	DPDT	On-Mom	Red	Solder Lug	28 V	With Barrier	Rectangular Button	-25 °C	50 °C	0.4 VA	No Marking	28 V	1000000 Cycles	Panel Mount Snap-In	LED Red	1.85 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.27
		10	$ 13.70
		100	$ 11.96
		1000	$ 9.31
Newark	Each	1	$ 28.99
		5	$ 27.53
		10	$ 25.52
		25	$ 23.28
		50	$ 20.15
		100	$ 18.80
		250	$ 17.12

Description

General part information

UB25NBK Series

Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Snap-In
