RP1190BFC

Active

Hammond Manufacturing

BOX PC WHT 7.68"L X 3.44"W

Search across all available documentation for this part.

Active

Hammond Manufacturing

BOX PC WHT 7.68"L X 3.44"W

Technical Specifications

Parameters and characteristics for this part

Specification	RP1190BFC

Area (L x W)	26.4 in˛
Area (L x W)	170 cm˛
Color	White, Clear Cover/Door, Off
Container Type	Box
Design	Cover Included
Height [z]	70.1 mm
Height [z]	2.76 in
Material	Polycarbonate
Material Flammability Rating	UL94 HB
Size / Dimension [x]	7.68 "
Size / Dimension [x]	195.07 mm
Size / Dimension [y]	87.38 mm
Size / Dimension [y]	3.44 in
Thickness	2.03 mm
Thickness	0.08 "

Part	Design	Material	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Thickness	Thickness	Container Type	Area (L x W)	Area (L x W)	Color	Material Flammability Rating	Height [z]	Height [z]
Hammond Manufacturing RP1190C	Cover Included	Polycarbonate	166.12 mm	6.54 in	86.36 mm	3.4 in	2.03 mm	0.08 "	Box	143 cm˛	22.1 in˛	Clear Cover/Door Off White	UL94 V-2	70.1 mm	2.76 in
Hammond Manufacturing RP1190BF	Cover Included	Polycarbonate	195.07 mm	7.68 "	87.38 mm	3.44 in	2.03 mm	0.08 "	Box	170 cm˛	26.4 in˛	Off White	UL94 V-2	70.1 mm	2.76 in
Hammond Manufacturing RP1190BFC	Cover Included	Polycarbonate	195.07 mm	7.68 "	87.38 mm	3.44 in	2.03 mm	0.08 "	Box	170 cm˛	26.4 in˛	Clear Cover/Door Off White	UL94 HB	70.1 mm	2.76 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

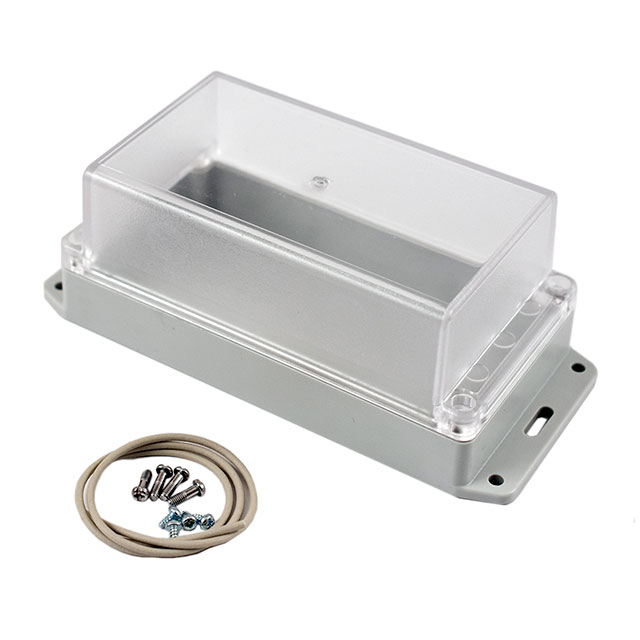

Box Polycarbonate White, Off, Clear Cover/Door Cover Included 7.680" L x 3.440" W (195.07mm x 87.38mm) X 2.760" (70.10mm)
