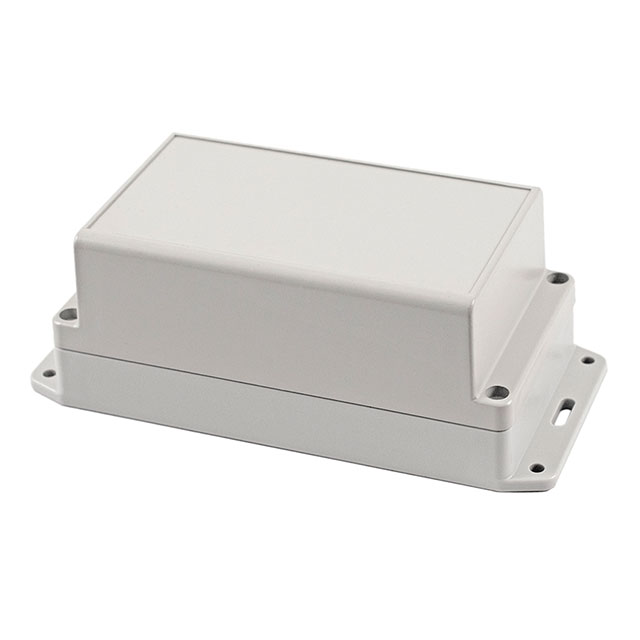

RP1190BF

Active

Hammond Manufacturing

BOX PC WHT 7.68"L X 3.44"W

Search across all available documentation for this part.

Active

Hammond Manufacturing

BOX PC WHT 7.68"L X 3.44"W

Technical Specifications

Parameters and characteristics for this part

Specification	RP1190BF

Area (L x W)	26.4 in˛
Area (L x W)	170 cm˛
Color	Off, White
Container Type	Box
Design	Cover Included
Height [z]	70.1 mm
Height [z]	2.76 in
Material	Polycarbonate
Material Flammability Rating	UL94 V-2
Size / Dimension [x]	7.68 "
Size / Dimension [x]	195.07 mm
Size / Dimension [y]	87.38 mm
Size / Dimension [y]	3.44 in
Thickness	2.03 mm
Thickness	0.08 "

Part	Design	Material	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Thickness	Thickness	Container Type	Area (L x W)	Area (L x W)	Color	Material Flammability Rating	Height [z]	Height [z]
Hammond Manufacturing RP1190C	Cover Included	Polycarbonate	166.12 mm	6.54 in	86.36 mm	3.4 in	2.03 mm	0.08 "	Box	143 cm˛	22.1 in˛	Clear Cover/Door Off White	UL94 V-2	70.1 mm	2.76 in
Hammond Manufacturing RP1190BF	Cover Included	Polycarbonate	195.07 mm	7.68 "	87.38 mm	3.44 in	2.03 mm	0.08 "	Box	170 cm˛	26.4 in˛	Off White	UL94 V-2	70.1 mm	2.76 in
Hammond Manufacturing RP1190BFC	Cover Included	Polycarbonate	195.07 mm	7.68 "	87.38 mm	3.44 in	2.03 mm	0.08 "	Box	170 cm˛	26.4 in˛	Clear Cover/Door Off White	UL94 HB	70.1 mm	2.76 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 25.47

General part information

Box Polycarbonate White, Off Cover Included 7.680" L x 3.440" W (195.07mm x 87.38mm) X 2.760" (70.10mm)

Technical documentation and resources

No documents available
