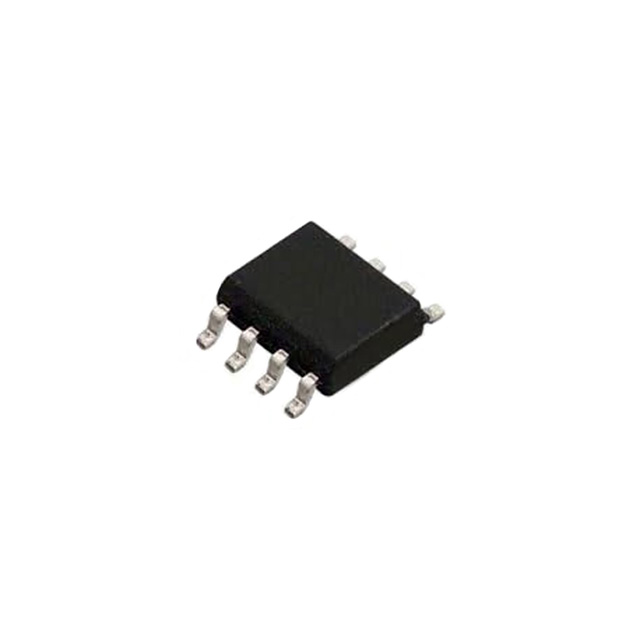

EL2630S(TA)

Active

Everlight Electronics Co Ltd

OPTOISO 5KV 2CH OPN COLL 8-SMD

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

OPTOISO 5KV 2CH OPN COLL 8-SMD

Technical Specifications

Parameters and characteristics for this part

Specification	EL2630S(TA)

Common Mode Transient Immunity (Min) [Min]	5 kV/µs
Current - DC Forward (If) (Max) [Max]	20 mA
Current - Output / Channel	50 mA
Data Rate	10 Mbps
Input Type	DC
Inputs - Side 1/Side 2 [custom]	2
Inputs - Side 1/Side 2 [custom]	0
Mounting Type	Surface Mount
Number of Channels [custom]	2
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Output Type	Open Collector
Propagation Delay tpLH / tpHL (Max) [custom]	100 ns
Propagation Delay tpLH / tpHL (Max) [custom]	100 ns
Rise / Fall Time (Typ) [custom]	40 ns
Rise / Fall Time (Typ) [custom]	10 ns
Supplier Device Package	8-SMD
Voltage - Forward (Vf) (Typ)	1.4 V
Voltage - Supply	7 V

Part	Output Type	Voltage - Supply	Supplier Device Package	Package / Case	Package / Case	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Data Rate	Number of Channels [custom]	Common Mode Transient Immunity (Min) [Min]	Input Type	Current - Output / Channel	Inputs - Side 1/Side 2 [custom]	Current - DC Forward (If) (Max) [Max]	Voltage - Forward (Vf) (Typ)
Everlight Electronics Co Ltd EL2630-V	Open Collector	7 V	8-DIP	0.3 in	8-DIP	7.62 mm	Through Hole	100 °C	-40 °C	100 ns	100 ns	40 ns	10 ns	10 Mbps	2	5 kV/µs	DC	50 mA	2	20 mA	1.4 V
Everlight Electronics Co Ltd EL2630S(TA)	Open Collector	7 V	8-SMD				Surface Mount	100 °C	-40 °C	100 ns	100 ns	40 ns	10 ns	10 Mbps	2	5 kV/µs	DC	50 mA	2	20 mA	1.4 V
Everlight Electronics Co Ltd EL2630S1(TA)-V	Open Collector	7 V	8-SMD				Surface Mount	100 °C	-40 °C	100 ns	100 ns	40 ns	10 ns	10 Mbps	2	5 kV/µs	DC	50 mA	2	20 mA	1.4 V
Everlight Electronics Co Ltd EL2630S(TA)-V	Open Collector	7 V	8-SMD				Surface Mount	100 °C	-40 °C	100 ns	100 ns	40 ns	10 ns	10 Mbps	2	5 kV/µs	DC	50 mA	2	20 mA	1.4 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Logic Output Optoisolator 10Mbps Open Collector 5000Vrms 2 Channel 5kV/µs CMTI 8-SMD
