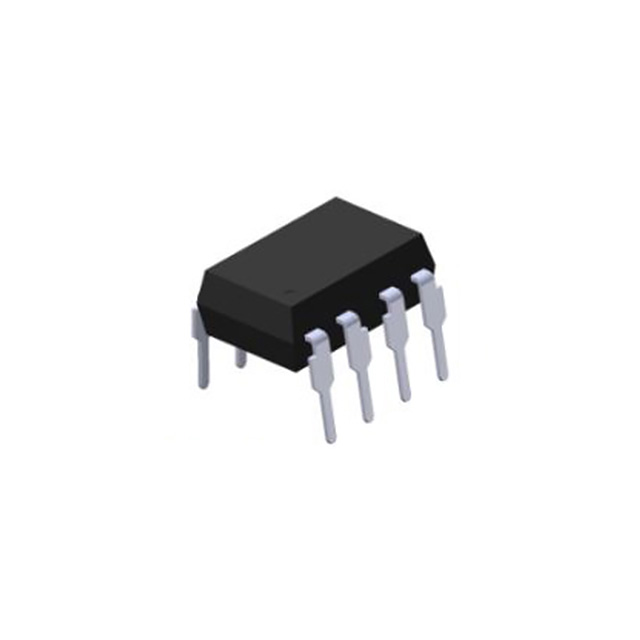

EL2630-V

Active

Everlight Electronics Co Ltd

OPTOISO 5KV OPEN COLLECTOR 8DIP

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

OPTOISO 5KV OPEN COLLECTOR 8DIP

Technical Specifications

Parameters and characteristics for this part

Specification	EL2630-V

Common Mode Transient Immunity (Min) [Min]	5 kV/µs
Current - DC Forward (If) (Max) [Max]	20 mA
Current - Output / Channel	50 mA
Data Rate	10 Mbps
Input Type	DC
Inputs - Side 1/Side 2 [custom]	2
Inputs - Side 1/Side 2 [custom]	0
Mounting Type	Through Hole
Number of Channels [custom]	2
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Output Type	Open Collector
Package / Case	0.3 in
Package / Case	8-DIP
Package / Case	7.62 mm
Propagation Delay tpLH / tpHL (Max) [custom]	100 ns
Propagation Delay tpLH / tpHL (Max) [custom]	100 ns
Rise / Fall Time (Typ) [custom]	40 ns
Rise / Fall Time (Typ) [custom]	10 ns
Supplier Device Package	8-DIP
Voltage - Forward (Vf) (Typ)	1.4 V
Voltage - Supply	7 V

Part	Output Type	Voltage - Supply	Supplier Device Package	Package / Case	Package / Case	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Data Rate	Number of Channels [custom]	Common Mode Transient Immunity (Min) [Min]	Input Type	Current - Output / Channel	Inputs - Side 1/Side 2 [custom]	Current - DC Forward (If) (Max) [Max]	Voltage - Forward (Vf) (Typ)
Everlight Electronics Co Ltd EL2630-V	Open Collector	7 V	8-DIP	0.3 in	8-DIP	7.62 mm	Through Hole	100 °C	-40 °C	100 ns	100 ns	40 ns	10 ns	10 Mbps	2	5 kV/µs	DC	50 mA	2	20 mA	1.4 V
Everlight Electronics Co Ltd EL2630S(TA)	Open Collector	7 V	8-SMD				Surface Mount	100 °C	-40 °C	100 ns	100 ns	40 ns	10 ns	10 Mbps	2	5 kV/µs	DC	50 mA	2	20 mA	1.4 V
Everlight Electronics Co Ltd EL2630S1(TA)-V	Open Collector	7 V	8-SMD				Surface Mount	100 °C	-40 °C	100 ns	100 ns	40 ns	10 ns	10 Mbps	2	5 kV/µs	DC	50 mA	2	20 mA	1.4 V
Everlight Electronics Co Ltd EL2630S(TA)-V	Open Collector	7 V	8-SMD				Surface Mount	100 °C	-40 °C	100 ns	100 ns	40 ns	10 ns	10 Mbps	2	5 kV/µs	DC	50 mA	2	20 mA	1.4 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Logic Output Optoisolator 10Mbps Open Collector 5000Vrms 2 Channel 5kV/µs CMTI 8-DIP
