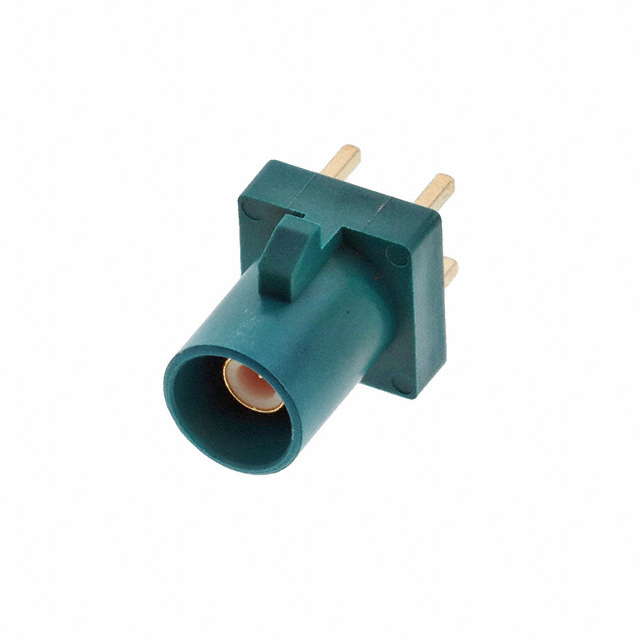

RF55-28Z-T-00-50-G-SH
ActiveAdam Tech
CONN SMB PLUG PCB 50OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
RF55-28Z-T-00-50-G-SH
ActiveAdam Tech
CONN SMB PLUG PCB 50OHM SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RF55-28Z-T-00-50-G-SH |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMB, Fakra |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Locking Ramp |
| Features | Code Z |
| Frequency - Max [Max] | 4 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.81 | |
| 10 | $ 2.38 | |||
| 25 | $ 2.24 | |||
| 40 | $ 2.40 | |||
| 50 | $ 2.13 | |||
| 80 | $ 2.23 | |||
| 100 | $ 2.03 | |||
| 230 | $ 1.99 | |||
| 300 | $ 1.88 | |||
| 440 | $ 1.86 | |||
| 500 | $ 1.81 | |||
| 945 | $ 1.72 | |||
| 1000 | $ 1.72 | |||
| 2400 | $ 1.57 | |||
| 2500 | $ 1.61 | |||
Description
General part information
RF55-28 Series
SMB, Fakra Connector Plug, Male Pin 50 Ohms Through Hole Solder
