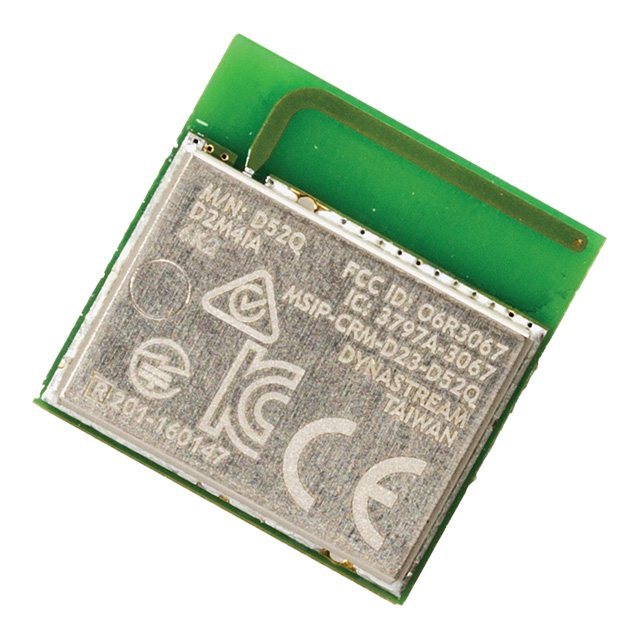

D52QD2M4IA-TRAY

Active

Dynastream Innovations

RF TXRX MOD ISM > 1GHZ TRACE SMD

Search across all available documentation for this part.

Active

Dynastream Innovations

RF TXRX MOD ISM > 1GHZ TRACE SMD

Technical Specifications

Parameters and characteristics for this part

Part	Protocol	Antenna Type	Package / Case	Utilized IC / Part	Serial Interfaces	RF Family/Standard	Data Rate	Mounting Type	Frequency	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Power - Output	Sensitivity	Current - Transmitting	Current - Receiving
Dynastream Innovations D52QD2M4IA-REEL	Bluetooth v4.2	Integrated Trace	34-SMD Module	nRF52832	I2C SPI UART	Bluetooth	60 kbps	Surface Mount	2.4 GHz	3.6 V	1.7 V	85 °C	-40 °C	4 dBm
Dynastream Innovations D52QD2M6IA-A-TRAY	ANT™	Integrated Trace	Module	nRF52832	I2C SPI UART	General ISM > 1GHz	60 kbps	Surface Mount	2.4 GHz	3.6 V	1.7 V	85 °C	-40 °C	4 dBm	-96.5 dBm	16 mA	16 mA
Dynastream Innovations D52QD2M4IA-TRAY	ANT™	Integrated Trace	34-SMD Module	nRF52832	I2C SPI UART	General ISM > 1GHz	60 kbps	Surface Mount	2.4 GHz	3.6 V	1.7 V	85 °C	-40 °C	4 dBm	-96.5 dBm	16 mA	16 mA
Dynastream Innovations D52QD2M4IA-A-REEL	Bluetooth v4.2	Integrated Trace	34-SMD Module	nRF52832	I2C SPI UART	Bluetooth	60 kbps	Surface Mount	2.4 GHz	3.6 V	1.7 V	85 °C	-40 °C	4 dBm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General ISM > 1GHz ANT™ Transceiver Module 2.4GHz Integrated, Trace Surface Mount
