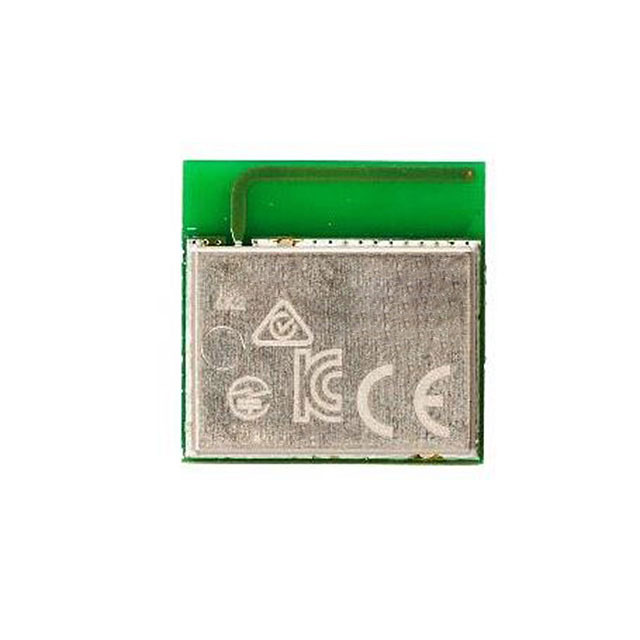

D52QD2M4IA-REEL

Active

Dynastream Innovations

RF TXRX MOD BT TH SMD

Search across all available documentation for this part.

Active

Dynastream Innovations

RF TXRX MOD BT TH SMD

Technical Specifications

Parameters and characteristics for this part

Part	Protocol	Antenna Type	Package / Case	Utilized IC / Part	Serial Interfaces	RF Family/Standard	Data Rate	Mounting Type	Frequency	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Power - Output	Sensitivity	Current - Transmitting	Current - Receiving
Dynastream Innovations D52QD2M4IA-REEL	Bluetooth v4.2	Integrated Trace	34-SMD Module	nRF52832	I2C SPI UART	Bluetooth	60 kbps	Surface Mount	2.4 GHz	3.6 V	1.7 V	85 °C	-40 °C	4 dBm
Dynastream Innovations D52QD2M6IA-A-TRAY	ANT™	Integrated Trace	Module	nRF52832	I2C SPI UART	General ISM > 1GHz	60 kbps	Surface Mount	2.4 GHz	3.6 V	1.7 V	85 °C	-40 °C	4 dBm	-96.5 dBm	16 mA	16 mA
Dynastream Innovations D52QD2M4IA-TRAY	ANT™	Integrated Trace	34-SMD Module	nRF52832	I2C SPI UART	General ISM > 1GHz	60 kbps	Surface Mount	2.4 GHz	3.6 V	1.7 V	85 °C	-40 °C	4 dBm	-96.5 dBm	16 mA	16 mA
Dynastream Innovations D52QD2M4IA-A-REEL	Bluetooth v4.2	Integrated Trace	34-SMD Module	nRF52832	I2C SPI UART	Bluetooth	60 kbps	Surface Mount	2.4 GHz	3.6 V	1.7 V	85 °C	-40 °C	4 dBm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	800	$ 10.54

General part information

Bluetooth Bluetooth v4.2 Transceiver Module 2.4GHz Integrated, Trace Surface Mount

Technical documentation and resources
