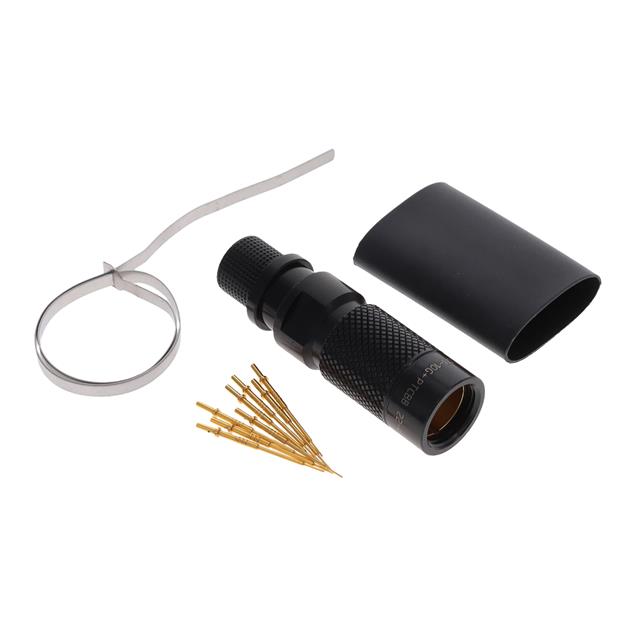

UCOM-10G+ PTCBB

Active

Amphenol Socapex

CONN PLUG MALE 8POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UCOM-10G+ PTCBB

Active

Amphenol Socapex

CONN PLUG MALE 8POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UCOM-10G+ PTCBB

Applications	Aviation, Marine, Military
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Features	Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Primary Material	Metal
Shell Finish	Black Nickel
Shell Material	Brass
Shell Size - Insert	11
Termination	Crimp

UCOM-10G+ Series

Part	Number of Positions	Primary Material	Mounting Type	Applications	Features	Contact Material	Ingress Protection	Contact Finish - Mating	Connector Type	Fastening Type	Shell Material	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [custom]	Cable Opening [custom]	Termination	Shell Finish	Color	Mounting Feature
Amphenol Socapex UCOM-10G+ LCUGA	8	Metal	Free Hanging (In-Line)	Aviation Marine Military	Backshell	Brass	IP68 - Dust Tight Waterproof	Gold	Receptacle Female Sockets	Push-Pull Threaded	Brass	11	-55 °C	125 °C	0.295 in	7.5 mm	Crimp
Amphenol Socapex UCOM-10G+ LCGGA	8	Metal	Free Hanging (In-Line)	Aviation Marine Military	Backshell	Brass	IP68 - Dust Tight Waterproof	Gold	Receptacle Female Sockets	Push-Pull Threaded	Brass	11	-55 °C	125 °C	0.295 in	7.5 mm	Crimp	Olive Drab Cadmium	Olive Drab
Amphenol Socapex UCOM-10G+ PTSBGA	8	Metal	Free Hanging (In-Line)	Aviation Marine Military	Backshell	Brass	IP68 - Dust Tight Waterproof	Gold	Male Pins Plug		Brass	11	-55 °C	125 °C	0.295 in	7.5 mm		Black Nickel	Black
Amphenol Socapex UCOM-10G+ RP B	8	Metal	Panel Mount Through Hole	Aviation Marine Military		Brass	IP68 - Dust Tight Waterproof	Gold	Receptacle Female Sockets		Brass	11	-55 °C	125 °C			Solder	Black Nickel	Black	Bulkhead - Front Side Nut
Amphenol Socapex UCOM10G+RSG	8	Metal		Aviation Marine Military	Backshell	Brass	IP68 - Dust Tight Waterproof	Gold	Receptacle Female Sockets		Brass	11	-55 °C	125 °C				Olive Drab Cadmium	Olive Drab	Bulkhead - Front Side Nut
Amphenol Socapex UCOM-10G+ LCUB	8	Metal	Free Hanging (In-Line)	Aviation Marine Military	Backshell	Brass	IP68 - Dust Tight Waterproof	Gold	Receptacle Female Sockets	Push-Pull Threaded	Brass	11	-55 °C	125 °C			Crimp
Amphenol Socapex UCOM-10G+ PTCBB	8	Metal	Free Hanging (In-Line)	Aviation Marine Military	Backshell	Brass	IP68 - Dust Tight Waterproof	Gold	Male Pins Plug		Brass	11	-55 °C	125 °C			Crimp	Black Nickel	Black
Amphenol Socapex UCOM-10G+ PTCUGA	8	Metal	Free Hanging (In-Line)	Aviation Marine Military	Backshell	Brass	IP68 - Dust Tight Waterproof	Gold	Male Pins Plug		Brass	11	-55 °C	125 °C	0.295 in	7.5 mm	Crimp
Amphenol Socapex UCOM-10G+ LSGGA	8	Metal	Free Hanging (In-Line)	Aviation Marine Military	Backshell	Brass	IP68 - Dust Tight Waterproof	Gold	Receptacle Female Sockets	Push-Pull Threaded	Brass	11	-55 °C	125 °C	0.295 in	7.5 mm		Olive Drab Cadmium	Olive Drab
Amphenol Socapex UCOM-10G+ LSUGA	8	Metal	Free Hanging (In-Line)	Aviation Marine Military	Backshell	Brass	IP68 - Dust Tight Waterproof	Gold	Receptacle Female Sockets	Push-Pull Threaded	Brass	11	-55 °C	125 °C	0.295 in	7.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 223.70
		10	$ 207.30
		25	$ 199.84
		50	$ 198.35

Description

General part information

UCOM-10G+ Series

8 (Data) Position Circular Connector Plug, Male Pins Crimp
